Husqvarna 325Ldx - Carburetor Not For Us

Name: Husqvarna 325Ldx - Carburetor Not For Us
SKU: 325ldx_carburetor_not_for_us-group
Price: 0.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 325Ldx - Carburetor Not For Us

Description

Husqvarna 325Ldx

Model Year -

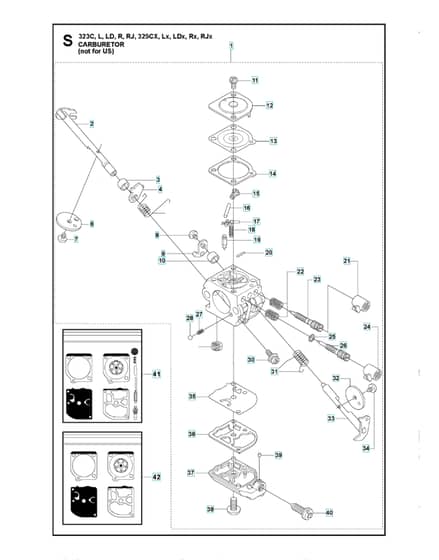

Carburetor Not For Us - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV503 53 57-01 Available to backorder	Strainer	£5.26 £4.38
0	HV537 02 10-01 Available to backorder	Spring	£3.36 £2.80
1	HV588 17 11-56 Available to backorder	Carburettor	£61.20 £51.00
3	HV503 48 19-01 Available to backorder	Collar	£7.76 £6.47
4	HV537 04 90-01 Available to backorder	Lever	£5.68 £4.73
6	HV537 37 03-01 Available to backorder	Valve	£7.39 £6.16
7	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
8	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
9	HV537 01 98-01 Available to backorder	Lever	£6.98 £5.82
11	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
13	HV537 04 89-01 Available to backorder	Diaphragm	£21.32 £17.77
14	HV537 02 04-01 Available to backorder	Gasket	£4.66 £3.88
16	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.68 £3.90
17	HV503 66 59-01 Available to backorder	Lever	£5.68 £4.73
19	HV503 47 97-01 Available to backorder	Valve	£14.94 £12.45
20	HV537 02 08-01 Available to backorder	Plug	£3.89 £3.24
22	HV503 48 08-01 Available to backorder	Spring	£3.48 £2.90
23	HV537 12 78-01 Available to backorder	Screw	£24.92 £20.77
24	HV537 02 16-01 Available to backorder	Limiter Cap	£2.48 £2.07
25	HV503 97 40-01 Available to backorder	Washer	£2.34 £1.95
30	HV503 75 53-01 Available to backorder	Screw	£1.15 £0.96
31	HV537 01 97-01 Available to backorder	Spring	£2.72 £2.27
32	HV537 01 99-01 Available to backorder	Valve	£5.88 £4.90
34	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
35	HV537 02 00-01 Available to backorder	Diaphragm Pump	£15.12 £12.60
36	HV537 02 01-01 Available to backorder	Gasket	£4.66 £3.88
37	HV537 02 02-01 Available to backorder	Cover	£24.24 £20.20
39	HV503 48 11-01 Available to backorder	Piece	£6.40 £5.33
40	HV537 02 07-01 Available to backorder	Screw	£1.82 £1.52
41	HV531 00 45-53 Available to backorder	Gasket Kit	£15.86 £13.22
42	HV531 00 45-52 Available to backorder	Gasket Kit	£12.84 £10.70
