Husqvarna 325HDA55X-SERIES - Ignition System & Clutch

Name: Husqvarna 325HDA55X-SERIES - Ignition System & Clutch
SKU: 325hda55x_series_ignition_system_clutch-group
Price: 1.49 GBP
Availability: InStock

Part No. 325hda55x_series_ignition_system_clutch-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 325HDA55X-SERIES - Ignition System & Clutch

Description

Husqvarna 325HDA55X-SERIES

Model Year - - 20054000001-Current

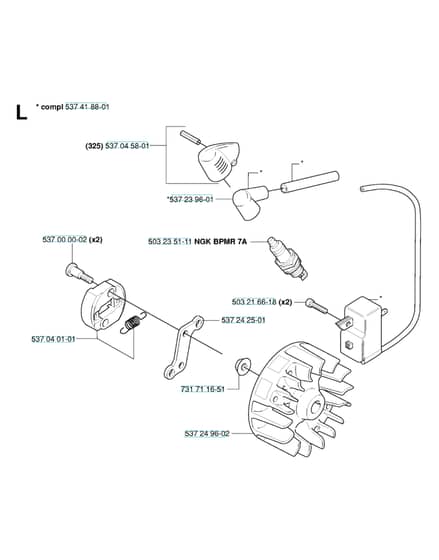

Ignition System & Clutch - Parts Diagram

	Part No.	Details
503	HV503 21 66-18 Available to backorder	Screw Ihsct	£1.79 £1.49
503	HV503 23 51-11 In stock	Spark Plug	£2.80 £2.33
537	HV537 23 96-01 Available to backorder	Spark Plug Cap	£8.06 £6.72
537	HV537 41 88-01 Available to backorder	Ignition Module	£111.00 £92.50
537	HV537 00 00-02 Available to backorder	Screw	£3.32 £2.77
537	HV537 24 25-01 Available to backorder	Clutch Hub	£8.98 £7.48
537	HV537 04 58-01 Available to backorder	Cover	£5.89 £4.91
537	HV537 24 96-02 Available to backorder	Flywheel	£60.98 £50.82
731	HV731 71 16-51 Available to backorder	Hexagon Nut Flange	£2.94 £2.45
