Husqvarna 325HD60X-SERIES - Gear Housing

Description

Husqvarna 325HD60X-SERIES

Model Year - - 20090400001-Current

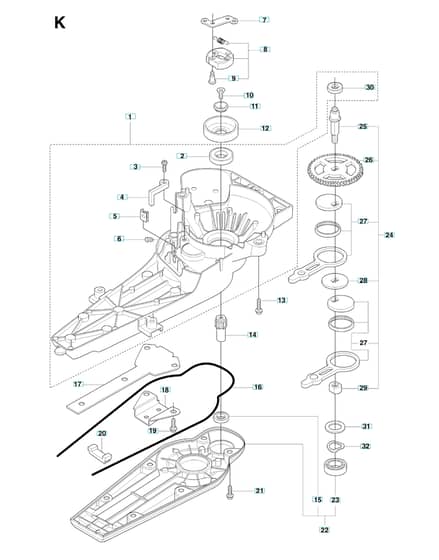

Gear Housing - Parts Diagram

	Part No.	Details
1	HV537 18 94-04 Available to backorder	Gear Housing	£155.52 £129.60
2	HV738 21 02-04 Available to backorder	Ball Bearing	£6.97 £5.81
3	HV503 21 27-13 Available to backorder	Screw Ccrpant	£1.28 £1.07
5	HV503 22 72-01 Available to backorder	Speed Nut	£0.85 £0.71
6	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.09 £9.24
7	HV537 24 25-01 Available to backorder	Clutch Hub	£8.98 £7.48
8	HV544 08 32-01 Available to backorder	Clutch Assy	£70.32 £58.60
9	HV503 84 29-02 Available to backorder	Screw	£2.56 £2.13
10	HV725 64 49-56 Available to backorder	Screw Ihcsfm	£2.83 £2.36
11	HV537 09 03-01 Available to backorder	Washer	£3.59 £2.99
12	HV537 03 96-01 Available to backorder	Clutch Drum	£34.93 £29.11
13	HV503 21 62-20 Available to backorder	Screw Ihscft	£2.05 £1.71
15	HV503 25 05-01 Available to backorder	Ball Bearing	£6.31 £5.26
16	HV503 26 32-03 Available to backorder	O-Ring	£3.56 £2.97
17	HV537 08 04-01 Available to backorder	Wear Plate	£7.06 £5.88
18	HV537 09 89-01 Available to backorder	Guide Plate	£5.46 £4.55
20	HV537 05 33-01 Available to backorder	Sealing	£5.03 £4.19
21	HV503 21 68-16 Available to backorder	Screw Ihsct	£1.82 £1.52
22	HV537 11 02-01 Available to backorder	Hub Cap	£91.92 £76.60
23	HV738 21 88-00 Available to backorder	Ball Bearing	£6.31 £5.26
25	HV503 98 19-01 Available to backorder	Drive Shaft	£14.81 £12.34
26	HV503 98 17-01 Available to backorder	Gear Rim	£62.04 £51.70
28	HV503 98 22-01 Available to backorder	Spacer	£9.62 £8.02
29	HV503 98 20-01 In stock	Nut	Was £2.42 £2.02 Special Price £1.63 £1.36
30	HV738 21 98-04 Available to backorder	Ball Bearing	£5.17 £4.31
31	HV503 23 00-14 In stock	Washer	Was £2.52 £2.10 Special Price £1.72 £1.43
32	HV503 23 03-01 Available to backorder	Washer	£2.30 £1.92
