Husqvarna 325 Lxt - Shaft & Handle 3

Husqvarna 325 Lxt - Shaft & Handle 3

Part No. 325_lxt_2002_01_shaft_handle_3-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 325 Lxt - Shaft & Handle 3

Husqvarna 325 Lxt - Shaft & Handle 3

Description

Husqvarna 325 Lxt

Model Year - 2002-01

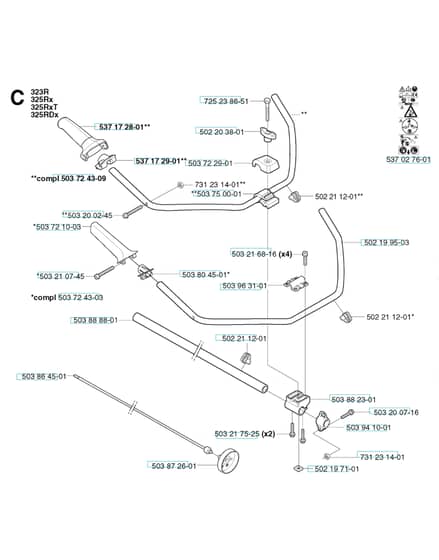

Shaft & Handle 3 - Parts Diagram

Ref.		Img.	Part No.	Details
	502		HV502 20 38-01 Available to backorder	Knob		£7.18 £5.98
	502		HV502 19 71-01 In stock	Square Nut		£5.15 £4.29
	502		HV502 21 12-01 Available to backorder	Staple		£0.90 £0.75
	502		HV502 19 95-03 Available to backorder	Handlebar		£42.94 £35.78
	503		HV503 20 07-16 Available to backorder	Screw Ihscfm		£2.05 £1.71
	503		HV503 21 75-25 Available to backorder	Screw Ihscft		£2.05 £1.71
	503		HV503 86 45-01 Available to backorder	Drive Shaft		£75.96 £63.30
	503		HV503 94 10-01 Available to backorder	Hook		£8.34 £6.95
	503		HV503 21 07-45 Available to backorder	Screw Ihsct		£3.66 £3.05
	503		HV503 72 29-01 Available to backorder	Cover		£8.98 £7.48
	503		HV503 87 26-01 Available to backorder	Clutch Drum Assy		£47.05 £39.21
	503		HV503 96 31-01 Available to backorder	Bracket		£11.03 £9.19
	503		HV503 20 02-45 Available to backorder	Screw Ihscfm		£2.30 £1.92
	503		HV503 21 68-16 Available to backorder	Screw Ihsct		£1.82 £1.52
	503		HV503 72 43-09 Available to backorder	Handlebar		£60.12 £50.10
	503		HV503 88 88-01 Available to backorder	Tube		£121.44 £101.20
	537		HV537 17 29-01 Available to backorder	Cover		£5.78 £4.82
	537		HV537 17 28-01 Available to backorder	Handle		£13.46 £11.22
	725		HV725 23 86-51 Available to backorder	Screw Ehhm		£6.01 £5.01
	731		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08

Description

Husqvarna 325 Lxt

Model Year - 2002-01

Shaft & Handle 3 - Parts Diagram
