Husqvarna 325 Lx - Cylinder, Piston & Muffler

Description

Husqvarna 325 Lx

Model Year - Current

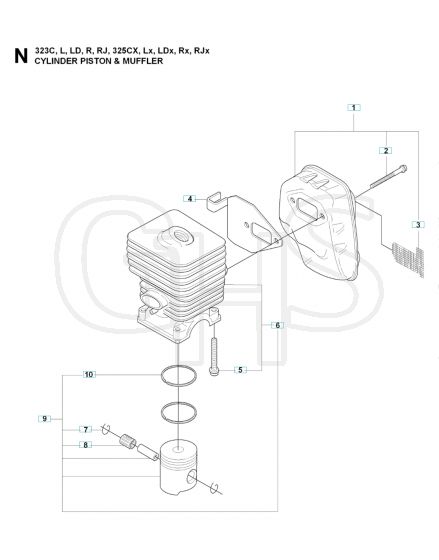

Cylinder, Piston & Muffler - Parts Diagram

	Part No.	Details
1	HV537 16 19-01 Available to backorder	Muffler Assy	£57.74 £48.12
2	HV502 07 81-01 Available to backorder	Screw Ehhfm	£3.59 £2.99
3	HV503 87 17-01 Available to backorder	Spark Arrester Screen	£5.60 £4.67
4	HV537 01 41-01 Available to backorder	Gasket	£3.31 £2.76
6	HV537 03 20-08 Available to backorder	Cylinder	£180.12 £150.10
7	HV737 44 08-00 Available to backorder	Circlip	£0.77 £0.64
8	HV503 71 22-01 Available to backorder	Bearing	£9.91 £8.26
9	HV537 40 59-02 Available to backorder	Piston	£83.40 £69.50
10	HV537 40 62-01 Available to backorder	Piston Ring	£12.97 £10.81
