Husqvarna 324Ldx - Shaft & Handle

Husqvarna 324Ldx - Shaft & Handle

Part No. 324ldx_shaft_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 324Ldx - Shaft & Handle

Husqvarna 324Ldx - Shaft & Handle

Description

Husqvarna 324Ldx

Model Year -

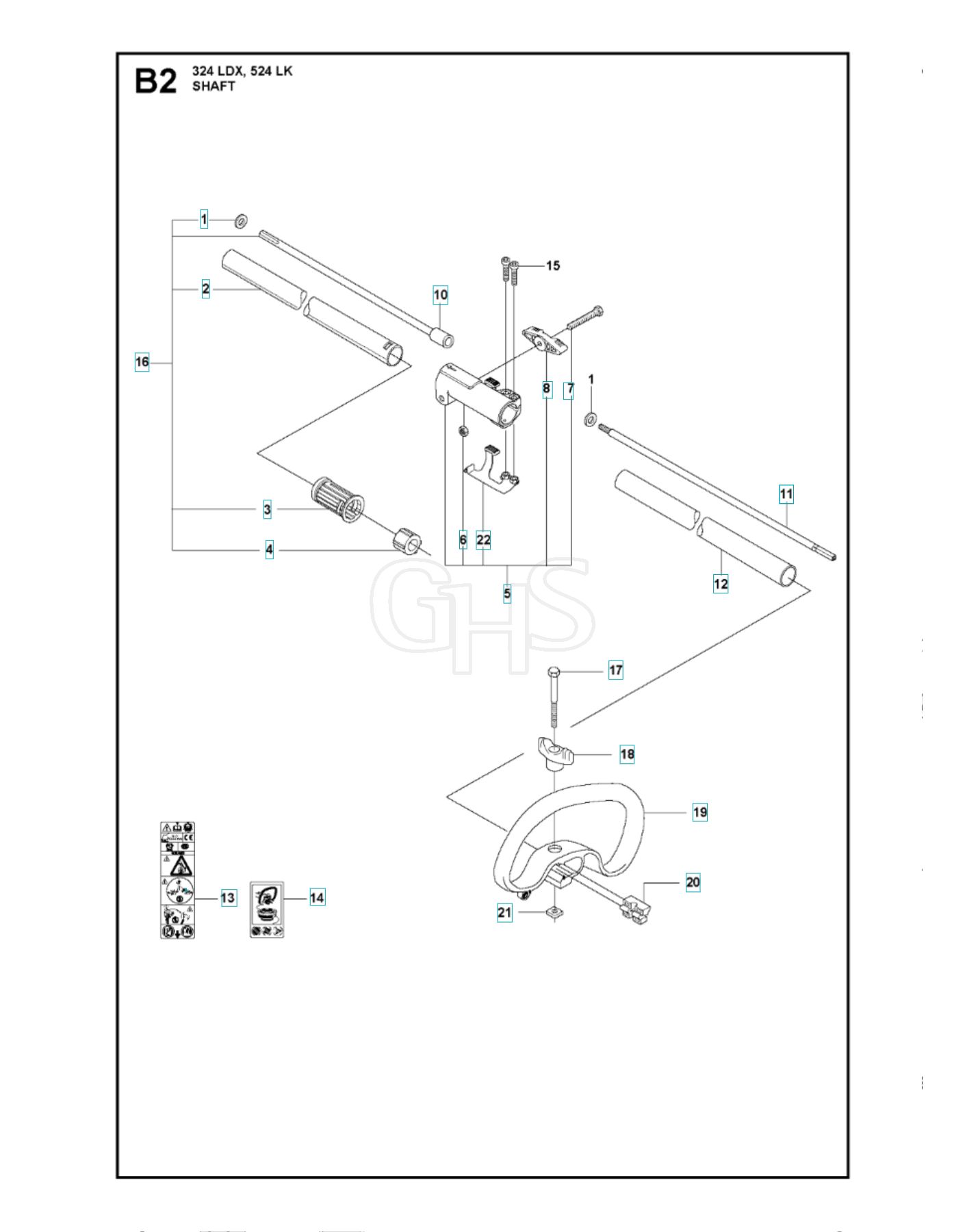

Shaft & Handle - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV735 58 08-10 Available to backorder	Lockwasher		£0.77 £0.64
	2		HV537 08 27-01 Available to backorder	Tubel		£69.36 £57.80
	4		HV503 78 52-02 Available to backorder	Supporting Bearing		£6.41 £5.34
	5		HV576 28 26-02 Available to backorder	Clamping Sleeve Assy		£31.99 £26.66
	6		HV731 23 16-01 Available to backorder	Hexagon Nut		£1.56 £1.30
	7		HV725 23 76-01 Available to backorder	Screw		£1.67 £1.39
	8		HV576 28 24-01 Available to backorder	Knob		£5.48 £4.57
	11		HV537 08 30-01 Available to backorder	Drive Shaftl		£74.52 £62.10
	11		HV537 23 48-05 Available to backorder	Drive Shaftl		£74.52 £62.10
	12		HA587 98 79-01 Available to backorder	Tubel		£36.49 £30.41
	13		HV589 29 51-01 Available to backorder	Label		£8.98 £7.48
	15		HV503 20 07-25 Available to backorder	Screw Ihscfm		£2.30 £1.92
	17		HV725 23 80-51 Available to backorder	Screw Ehhm		£3.66 £3.05
	18		HV503 87 90-01 Available to backorder	Knob		£5.88 £4.90
	20		HV503 94 03-01 Available to backorder	Distance		£6.40 £5.33
	21		HV502 19 71-01 In stock	Square Nut		£5.15 £4.29

Description

Husqvarna 324Ldx

Model Year -

Shaft & Handle - Parts Diagram
