Husqvarna 324HDA55X-SERIES - Handle & Controls

Name: Husqvarna 324HDA55X-SERIES - Handle & Controls
SKU: 324hda55x_series_handle_controls-group
Price: 1.49 GBP
Availability: InStock

Part No. 324hda55x_series_handle_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 324HDA55X-SERIES - Handle & Controls

Description

Husqvarna 324HDA55X-SERIES

Model Year - - 20053600001-Current

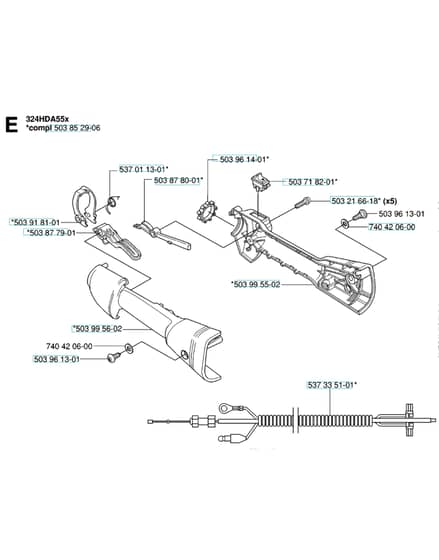

Handle & Controls - Parts Diagram

	Part No.	Details
503	HV503 99 55-02 Available to backorder	Handle Half	£26.28 £21.90
503	HV503 87 79-01 Available to backorder	Throttle Trigger	£5.14 £4.28
503	HV503 96 13-01 Available to backorder	Screw	£2.05 £1.71
503	HV503 99 56-02 Available to backorder	Handle Half	£26.28 £21.90
503	HV503 21 66-18 Available to backorder	Screw Ihsct	£1.79 £1.49
503	HV503 87 80-01 Available to backorder	Throttle Lockout	£7.06 £5.88
503	HV503 96 14-01 Available to backorder	Absorber	£5.42 £4.52
503	HV503 71 82-01 Available to backorder	Switch	£16.98 £14.15
503	HV503 91 81-01 Available to backorder	Throttle Lever	£8.34 £6.95
537	HV537 33 51-01 Available to backorder	Wiring Assy	£54.49 £45.41
537	HV537 01 13-01 Available to backorder	Recoil Spring	£3.46 £2.88
740	HV740 42 06-00 Available to backorder	O-Ring	£3.82 £3.18
