Husqvarna 323RII - Carburetor & Air Filter

Name: Husqvarna 323RII - Carburetor & Air Filter
SKU: 323rii_carburetor_air_filter-group
Price: 1.72 GBP
Availability: InStock

Description

Husqvarna 323RII

Model Year -

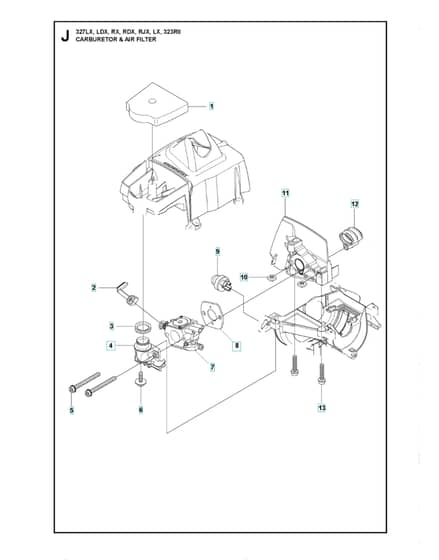

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
1	HV537 14 31-01 Available to backorder	Air Filter Assy	£8.52 £7.10
0	HV505 27 10-01 In stock	Filter	£19.64 £16.37
2	HV503 96 25-01 Available to backorder	Choke Control	£6.46 £5.38
3	HV740 68 11-21 Available to backorder	V-Ring	£5.68 £4.73
4	HV502 49 90-01 Available to backorder	Bracket	£10.48 £8.73
5	HV503 21 75-50 Available to backorder	Screw Ihscft	£3.04 £2.53
6	HV503 21 77-16 Available to backorder	Screw Ihsct	£2.06 £1.72
7	HV576 01 98-01 Available to backorder	Carburettorhualong Hq-2. Only Option For Us	£61.20 £51.00
7	HV588 17 11-56 Available to backorder	Carburettorzama C1Q-El24. Not For Us	£61.20 £51.00
8	HV503 49 71-01 Available to backorder	Gasket	£2.96 £2.47
9	HV503 93 66-01 In stock	Purge	£15.25 £12.71
10	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
11	HV503 91 09-01 Available to backorder	Insulation Wall	£12.94 £10.78
12	HV503 94 26-01 Available to backorder	Inlet Pipe	£10.36 £8.63
13	HV503 20 03-25 Available to backorder	Screw Ihscfm	£2.34 £1.95
