Husqvarna 323HD60 - Gear Housing

Name: Husqvarna 323HD60 - Gear Housing
SKU: 323hd60_gear_housing-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 323HD60

Model Year - - 20090400001-Current

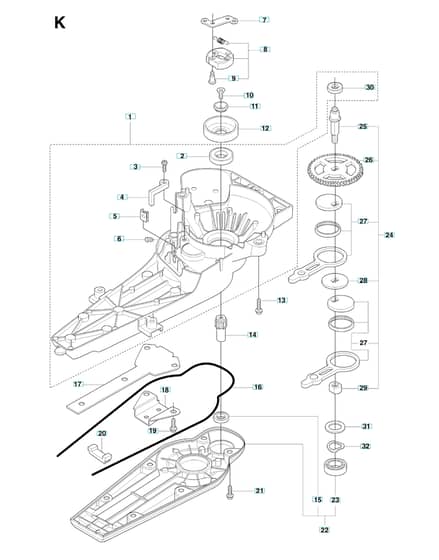

Gear Housing - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV537 18 94-04 Available to backorder	Gear Housing	£162.38 £135.32
2	HV738 21 02-04 Available to backorder	Ball Bearing	£7.12 £5.93
3	HV503 21 27-13 Available to backorder	Screw Ccrpant	£1.28 £1.07
5	HV503 22 72-01 Available to backorder	Speed Nut	£0.92 £0.77
6	HV738 88 10-01 Available to backorder	Lubrication Nipple	£11.00 £9.17
7	HV537 24 25-01 Available to backorder	Clutch Hub	£9.06 £7.55
8	HV544 08 32-01 Available to backorder	Clutch Assy	£75.48 £62.90
9	HV503 84 29-02 Available to backorder	Screw	£2.58 £2.15
10	HV725 64 49-56 Available to backorder	Screw Ihcsfm	£2.84 £2.37
11	HV537 09 03-01 Available to backorder	Washer	£3.62 £3.02
12	HV537 03 96-01 Available to backorder	Clutch Drum	£35.26 £29.38
13	HV503 21 62-20 Available to backorder	Screw Ihscft	£2.06 £1.72
15	HV503 25 05-01 Available to backorder	Ball Bearing	£6.36 £5.30
16	HV503 26 32-03 Available to backorder	O-Ring	£3.62 £3.02
17	HV537 08 04-01 Available to backorder	Wear Plate	£6.62 £5.52
18	HV537 09 89-01 Available to backorder	Guide Plate	£5.52 £4.60
20	HV537 05 33-01 Available to backorder	Sealing	£5.08 £4.23
21	HV503 21 68-16 Available to backorder	Screw Ihsct	£1.76 £1.47
22	HV537 11 02-01 Available to backorder	Hub Cap	£95.96 £79.97
23	HV738 21 88-00 Available to backorder	Ball Bearing	£6.36 £5.30
24	HV503 98 23-03 Available to backorder	Drive Shaft	£185.02 £154.18

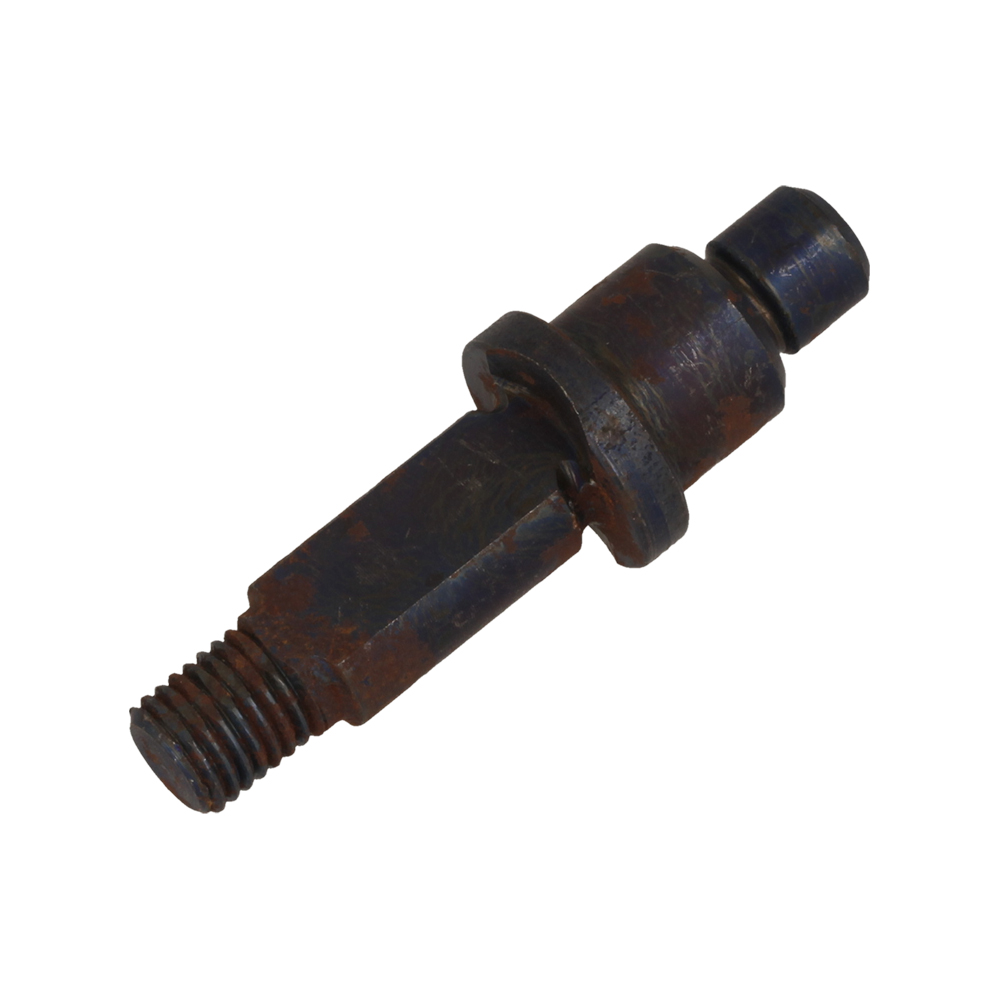

25	HV503 98 19-01 In stock	Drive Shaft	Was £13.96 £11.63 Special Price £9.77 £8.14
26	HV503 98 17-01 Available to backorder	Gear Rim	£64.78 £53.98
28	HV503 98 22-01 Available to backorder	Spacer	£9.72 £8.10
29	HV503 98 20-01 In stock	Nut	Was £2.30 £1.92 Special Price £1.63 £1.36
30	HV738 21 98-04 Available to backorder	Ball Bearing	£6.36 £5.30
31	HV503 23 00-14 In stock	Washer	Was £2.46 £2.05 Special Price £1.72 £1.43
32	HV503 23 03-01 Available to backorder	Washer	£2.34 £1.95
