Husqvarna 323Ex - Carburetor

Name: Husqvarna 323Ex - Carburetor
SKU: 323ex_carburetor-group
Price: 0.94 GBP
Availability: InStock

Part No. 323ex_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 323Ex

Model Year -

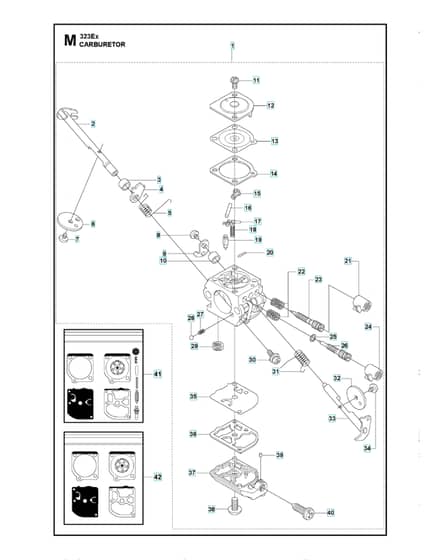

Carburetor - Parts Diagram

	Part No.	Details
2	HV537 02 09-01 Available to backorder	Shaft Assy	£22.57 £18.81
3	HV503 48 19-01 Available to backorder	Collar	£7.70 £6.42
4	HV537 04 90-01 Available to backorder	Lever	£5.63 £4.69
5	HV537 02 10-01 Available to backorder	Spring	£3.32 £2.77
6	HV537 02 11-01 Available to backorder	Valve	£9.16 £7.63
7	HV503 48 18-01 Available to backorder	Screw	£1.28 £1.07
8	HV503 47 90-01 Available to backorder	Screw	£1.28 £1.07
9	HV537 01 98-01 Available to backorder	Lever	£6.91 £5.76
11	HV503 48 05-01 Available to backorder	Screw	£1.56 £1.30
13	HV537 04 89-01 Available to backorder	Diaphragm	£21.10 £17.58
14	HV537 02 04-01 Available to backorder	Gasket	£4.63 £3.86
16	HV503 48 00-01 Available to backorder	Pin Retaining Screw	£4.64 £3.87
17	HV503 66 59-01 Available to backorder	Lever	£5.63 £4.69
19	HV503 47 97-01 Available to backorder	Valve	£14.81 £12.34
20	HV537 02 08-01 Available to backorder	Plug	£3.82 £3.18
22	HV503 48 08-01 Available to backorder	Spring	£3.46 £2.88
23	HV537 12 78-01 Available to backorder	Screw	£24.68 £20.57
24	HV537 02 16-01 Available to backorder	Limiter Cap	£2.47 £2.06
25	HV503 97 40-01 Available to backorder	Washer	£2.30 £1.92
29	HV503 53 57-01 Available to backorder	Strainer	£5.44 £4.53
30	HV503 75 53-01 Available to backorder	Screw	£1.13 £0.94
31	HV537 01 97-01 Available to backorder	Spring	£2.74 £2.28
32	HV537 01 99-01 Available to backorder	Valve	£5.84 £4.87
34	HV503 47 92-01 Available to backorder	Screw	£1.28 £1.07
35	HV537 02 00-01 Available to backorder	Diaphragm Pump	£14.98 £12.48
36	HV537 02 01-01 Available to backorder	Gasket	£4.63 £3.86
37	HV537 02 02-01 Available to backorder	Cover	£24.00 £20.00
39	HV503 48 11-01 Available to backorder	Piece	£6.36 £5.30
40	HV537 02 07-01 Available to backorder	Screw	£1.79 £1.49
41	HV531 00 45-53 Available to backorder	Gasket Kitrepairkit	£15.72 £13.10
42	HV531 00 45-52 In stock	Gasket Kitset Of Gaskets	£13.79 £11.49
