Husqvarna 3120XP - Chain Brake & Clutch Cover

Husqvarna 3120XP - Chain Brake & Clutch Cover

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 3120XP - Chain Brake & Clutch Cover

Husqvarna 3120XP - Chain Brake & Clutch Cover

Description

Husqvarna 3120XP

Model Year -

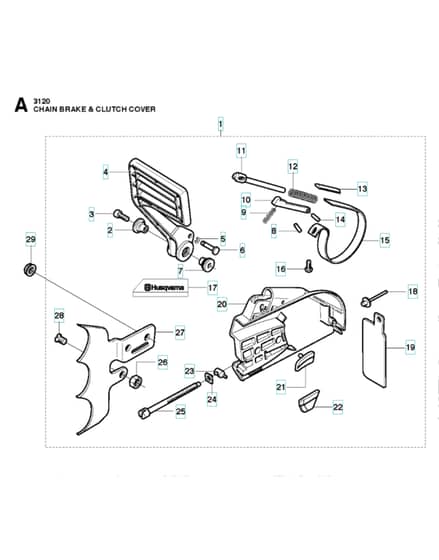

Chain Brake & Clutch Cover - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV503 13 55-03 Available to backorder	Clutch Cover Assy		£213.84 £178.20
	2		HV503 52 08-01 Available to backorder	Shaft		£4.22 £3.52
	3		HV503 20 26-20 Available to backorder	Screw Ihscm		£1.82 £1.52
	4		HV503 13 67-03 Available to backorder	Hand Guard		£36.12 £30.10
	5		HV735 31 08-20 Available to backorder	E-Clip		£0.86 £0.72
	6		HV503 80 27-01 Available to backorder	Pivot Pin		£5.04 £4.20
	7		HV501 76 80-01 Available to backorder	Shaft		£5.56 £4.63
	12		HV503 13 79-01 Available to backorder	Brake Spring		£7.12 £5.93
	14		HV721 42 52-50 Available to backorder	Spring Pin		£1.28 £1.07
	15		HV503 13 78-02 In stock	Brake Band		£10.88 £9.07
	17		HV503 62 42-01 Available to backorder	Decal		£3.36 £2.80
	19		HV503 13 81-01 Available to backorder	Chip Guard		£16.38 £13.65
	20		HV503 13 56-01 Available to backorder	Clutch Cover		£109.40 £91.17
	21		HV503 14 12-01 Available to backorder	Chain Guide		£7.76 £6.47
	22		HV503 14 13-01 Available to backorder	Chain Guide		£5.56 £4.63
	23		HV505 26 76-50 Available to backorder	Pawl		£8.40 £7.00
	24		HV501 24 81-01 Available to backorder	Lock Nut		£2.84 £2.37
	25		HV503 13 57-01 Available to backorder	Screw		£5.71 £4.76
	27		HV503 14 04-01 Available to backorder	Spike		£41.26 £34.38
	29		HV503 22 00-01 In stock	Hexagon Nut		£2.65 £2.21

Description

Husqvarna 3120XP

Model Year -

Chain Brake & Clutch Cover - Parts Diagram
