Husqvarna 310E NERA - 970654103 - Accessories

Description

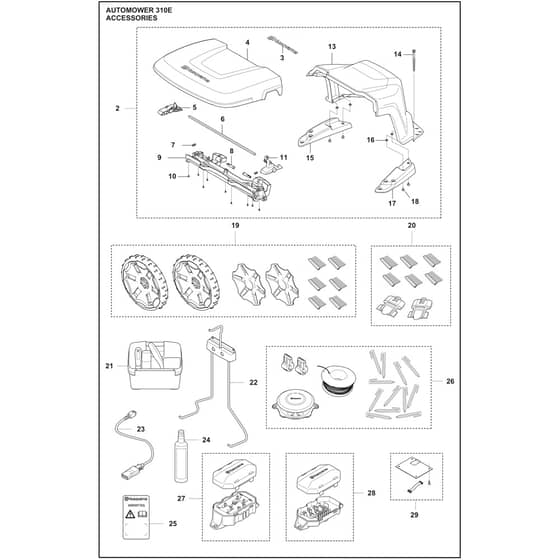

Husqvarna 310E NERA - 970654103 - Accessories - Parts Diagram

	Part No.	Details
2	HV536 66 41-01 Available to backorder	Housing (Automower House)	£244.08 £203.40
3	HV577 46 90-01 Available to backorder	Decal	£12.82 £10.68
4	HV586 88 58-02 Available to backorder	Lid (Kit)	£76.80 £64.00
5	HV585 32 40-02 Available to backorder	Handle	£13.46 £11.22
6	HV585 32 41-01 Available to backorder	Rod	£12.18 £10.15
7	HV580 51 14-01 Available to backorder	Spring	£3.46 £2.88
8	HV585 34 15-01 Available to backorder	Hinge Pin	£2.69 £2.24
9	HV585 34 16-01 Available to backorder	Beam	£32.70 £27.25
10	HV575 54 33-14 In stock	Screw	£1.93 £1.61
11	HV585 32 40-01 Available to backorder	Handle	£13.46 £11.22
12	HV585 32 36-02 Available to backorder	Hatch	£22.28 £18.57
13	HV536 79 72-01 Available to backorder	Housing (Cover)	£85.08 £70.90
14	HV597 43 58-01 Available to backorder	Screw (Screw kit)	£9.72 £8.10
15	HV585 32 38-02 Available to backorder	Support	£17.32 £14.43
16	HV503 22 66-01 Available to backorder	Square Nut	£2.86 £2.38
17	HV585 32 38-01 Available to backorder	Support	£17.32 £14.43
18	HV535 12 93-03 Available to backorder	Screw Ihpanm	£2.83 £2.36
19	HV536 84 92-02 Available to backorder	Wheel Kit (Terrain kit)	£113.28 £94.40
20	HV505 13 28-03 Available to backorder	Brush Kit (Wheel Brush refill kit)	£35.60 £29.67
21	HV590 85 51-01 Available to backorder	Maintenance Kit (Maintenance and Cleaning kit)	£49.49 £41.24
23	HV598 01 31-02 Available to backorder	Wiring Assy (Battery tester cable)	£60.60 £50.50
24	HV593 96 79-01 Available to backorder	Spray (Care and Shine Spray)	£13.61 £11.34
25	HV580 68 95-02 Available to backorder	Label (Warranty seal)	£2.24 £1.87
26	HV529 88 05-01 Available to backorder	Switch (FlexiFence)	£164.28 £136.90
27	HV529 45 97-01 Available to backorder	Switch (Automower Area Switch)	£41.03 £34.19
28	HV599 80 17-01 Available to backorder	Box (Connector protection box)	£12.95 £10.79
29	HV586 66 23-15 Available to backorder	Gps Module (Connect Module)	£303.60 £253.00
