Husqvarna 288XP - Chain Brake & Clutch Cover

Husqvarna 288XP - Chain Brake & Clutch Cover

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 288XP - Chain Brake & Clutch Cover

Husqvarna 288XP - Chain Brake & Clutch Cover

Description

Husqvarna 288XP

Model Year -

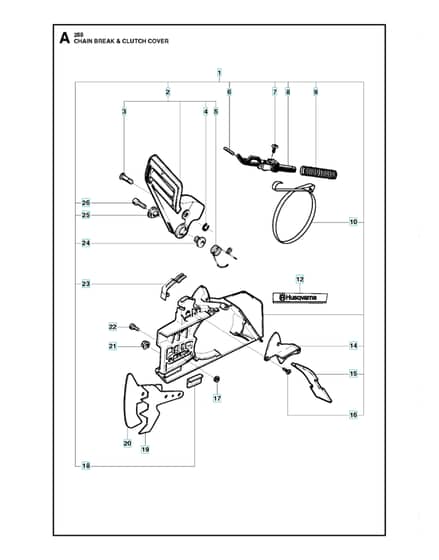

Chain Brake & Clutch Cover - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		HV503 74 67-02 Available to backorder	Chain Brake Assy		£144.46 £120.38
	2		HV503 76 08-01 Available to backorder	Hand Guard Assy		£41.08 £34.23
	3		HV503 80 27-01 Available to backorder	Pivot Pin		£5.04 £4.20
	4		HV735 31 08-20 Available to backorder	E-Clip		£0.86 £0.72
	5		HV503 57 97-01 Available to backorder	Position Spring		£4.54 £3.78
	8		HV501 87 53-01 Available to backorder	Knee Joint Assy		£28.46 £23.72
	9		HV503 70 99-02 Available to backorder	Brake Spring		£7.12 £5.93
	10		HV503 70 40-02 Available to backorder	Brake Band Assy		£14.22 £11.85
	12		HV503 77 54-01 Available to backorder	Label		£3.88 £3.23
	14		HV503 70 39-01 Available to backorder	Hub Cap		£9.18 £7.65
	15		HV503 57 37-01 Available to backorder	Chip Guard		£7.12 £5.93
	16		HV503 21 28-10 Available to backorder	Screw Ccrpant		£1.28 £1.07
	17		HV503 22 24-01 Available to backorder	Lock Nut		£1.82 £1.52
	18		HV501 51 72-01 Available to backorder	Chain Guide		£4.80 £4.00
	19		HV501 91 84-01 Available to backorder	Spike		£30.78 £25.65
	21		HV503 22 00-01 In stock	Hexagon Nut		£2.65 £2.21
	22		HV725 53 27-55 Available to backorder	Screw Ihscm		£1.56 £1.30
	23		HV501 87 47-01 In stock	Spring		£3.28 £2.73
	24		HV503 52 08-01 Available to backorder	Shaft		£4.22 £3.52
	25		HV501 76 80-01 Available to backorder	Shaft		£5.56 £4.63
	26		HV503 20 26-16 Available to backorder	Screw Ihscm		£1.82 £1.52

Description

Husqvarna 288XP

Model Year -

Chain Brake & Clutch Cover - Parts Diagram
