Husqvarna 288 - 2001-Current - Clutch & Oil Pump

Description

Husqvarna 288

Model Year - 2001-Current

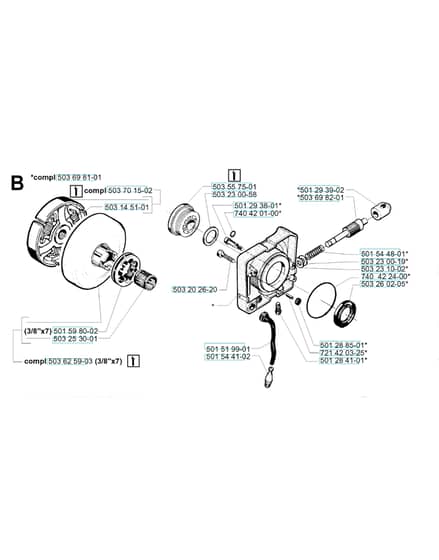

Clutch & Oil Pump - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
501288501	HV501 28 85-01 Available to backorder	Seal	£5.08 £4.23
501519901	HV501 51 99-01 Available to backorder	Oil Hose	£13.82 £11.52
501544102	HV501 54 41-02 Available to backorder	Oil Screen	£13.20 £11.00
501544801	HV501 54 48-01 Available to backorder	Spring	£3.36 £2.80
501598002	HV501 59 80-02 Available to backorder	Rim3/8X7	£13.44 £11.20
503145101	HV503 14 51-01 Available to backorder	Clutch Spring	£6.04 £5.03
503202620	HV503 20 26-20 Available to backorder	Screw Ihscm	£1.82 £1.52
503230058	HV503 23 00-58 Available to backorder	Washer	£2.84 £2.37
503253001	HV503 25 30-01 Available to backorder	Needle Bearing	£11.26 £9.38
503260205	HV503 26 02-05 Available to backorder	Sealing Ring	£8.94 £7.45
503557501	HV503 55 75-01 Available to backorder	Gear Wheel	£11.14 £9.28
503625903	HV503 62 59-03 Available to backorder	Clutch Drum Assy3/8X7	£61.88 £51.57
503698101	HV503 69 81-01 Available to backorder	Oil Pump Assy	£174.18 £145.15
503698201	HV503 69 82-01 Available to backorder	Pump Piston	£21.42 £17.85
503701502	HV503 70 15-02 Available to backorder	Clutch Assy	£77.02 £64.18
740422400	HV740 42 24-00 Available to backorder	O-Ring	£3.98 £3.32
