Husqvarna 288 - 2001-Current - Chain Brake

Description

Husqvarna 288

Model Year - 2001-Current

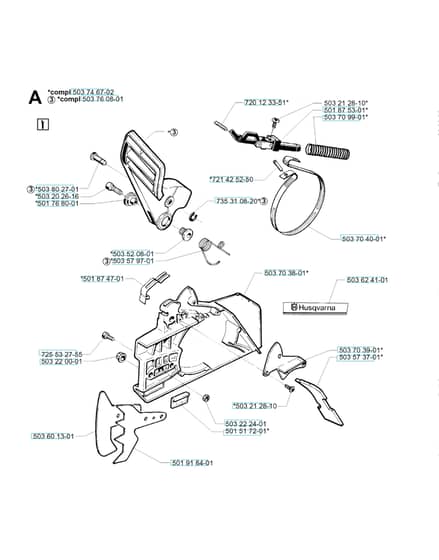

Chain Brake - Parts Diagram

	Part No.	Details
-1	HV501 68 68-01 In stock	Chain Catcher	£4.80 £4.00
0	HV501 81 48-01 Available to backorder	Protective Plate	£6.35 £5.29
1	HV725 53 42-55 Available to backorder	Screw Ihscm	£3.32 £2.77
2	HV503 26 02-05 Available to backorder	Sealing Ring	£8.32 £6.93
3	HV503 49 62-01 Available to backorder	Antivibration Element	£52.04 £43.37
4	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
5	HV503 69 76-01 Available to backorder	Grommet	£4.01 £3.34
6	HV501 29 66-01 Available to backorder	Spring	£3.32 £2.77
7	HV503 72 31-01 Available to backorder	Bushing	£5.63 £4.69
8	HV501 52 79-02 Available to backorder	Choke Control	£6.02 £5.02
9	HV501 81 57-01 Available to backorder	Bar Bolt	£4.86 £4.05
10	HV501 91 67-01 Available to backorder	Bellows	£9.62 £8.02
11	HV503 26 30-17 Available to backorder	O-Ring	£3.68 £3.07
12	HV501 27 13-02 Available to backorder	Cable Grommet	£3.84 £3.20
13	HV501 53 71-01 Available to backorder	Chain Tensioner Kit	£24.62 £20.52
14	HV720 13 07-10 Available to backorder	Parallel Pin	£1.32 £1.10
15	HV501 80 19-02 Available to backorder	Ledskena	£7.74 £6.45
16	HV725 53 29-55 Available to backorder	Screw Ihscm	£2.36 £1.97
17	HV501 91 81-01 Available to backorder	Spike	£22.69 £18.91
18	HV503 21 05-22 Available to backorder	Screw Ihsct	£2.30 £1.92
19	HV503 27 90-04 Available to backorder	Plug	£2.88 £2.40
20	HV503 60 12-01 Available to backorder	Spike	£13.63 £11.36
21	HV501 29 65-01 Available to backorder	Screw	£1.79 £1.49
22	HV501 52 78-01 Available to backorder	Grommet	£3.84 £3.20
501517201	HV501 51 72-01 Available to backorder	Chain Guide	£4.55 £3.79
501768001	HV501 76 80-01 Available to backorder	Shaft	£5.51 £4.59
501874701	HV501 87 47-01 In stock	Spring	£3.32 £2.77
501875301	HV501 87 53-01 Available to backorder	Knee Joint Assy	£28.20 £23.50
501918401	HV501 91 84-01 Available to backorder	Spike	£30.48 £25.40
503202616	HV503 20 26-16 Available to backorder	Screw Ihscm	£1.79 £1.49
503212810	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.32 £1.10
503220001	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
503222401	HV503 22 24-01 Available to backorder	Lock Nut	£1.87 £1.56
503520801	HV503 52 08-01 Available to backorder	Shaft	£4.50 £3.75
503573701	HV503 57 37-01 Available to backorder	Chip Guard	£7.06 £5.88
503579701	HV503 57 97-01 Available to backorder	Position Spring	£4.50 £3.75
503703801	HV503 70 38-01 Available to backorder	Clutch Cover	£69.12 £57.60
503703901	HV503 70 39-01 Available to backorder	Hub Cap	£9.08 £7.57
503746702	HV503 74 67-02 Available to backorder	Chain Brake Assy	£138.36 £115.30
503760801	HV503 76 08-01 Available to backorder	Hand Guard Assy	£40.69 £33.91
503802701	HV503 80 27-01 Available to backorder	Pivot Pin	£5.02 £4.18
721425250	HV721 42 52-50 Available to backorder	Spring Pin	£1.28 £1.07
725532755	HV725 53 27-55 Available to backorder	Screw Ihscm	£1.56 £1.30
735310820	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
