Husqvarna 281XP - Chain Brake & Clutch Cover

Husqvarna 281XP - Chain Brake & Clutch Cover

Part No. 281xp_chain_brake_clutch_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 281XP - Chain Brake & Clutch Cover

Husqvarna 281XP - Chain Brake & Clutch Cover

Description

Husqvarna 281XP

Model Year -

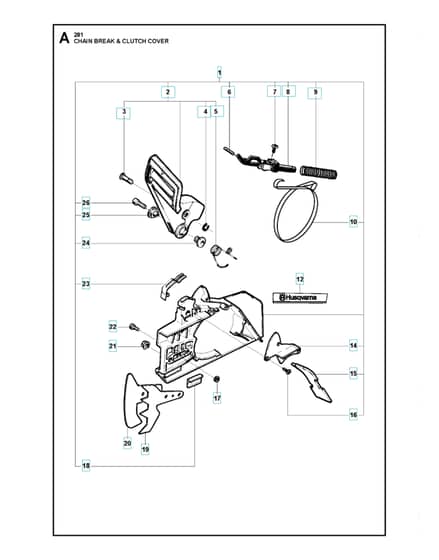

Chain Brake & Clutch Cover - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV503 74 67-02 Available to backorder	Chain Brake Assy		£138.36 £115.30
	2		HV503 76 08-01 Available to backorder	Hand Guard Assy		£40.69 £33.91
	3		HV503 80 27-01 Available to backorder	Pivot Pin		£5.02 £4.18
	4		HV735 31 08-20 Available to backorder	E-Clip		£0.78 £0.65
	5		HV503 57 97-01 Available to backorder	Position Spring		£4.50 £3.75
	8		HV501 87 53-01 Available to backorder	Knee Joint Assy		£28.20 £23.50
	10		HV503 70 40-02 Available to backorder	Brake Band Assy		£14.10 £11.75
	12		HV503 77 54-01 Available to backorder	Label		£3.84 £3.20
	14		HV503 70 39-01 Available to backorder	Hub Cap		£9.08 £7.57
	15		HV503 57 37-01 Available to backorder	Chip Guard		£7.06 £5.88
	16		HV503 21 28-10 Available to backorder	Screw Ccrpant		£1.32 £1.10
	17		HV503 22 24-01 Available to backorder	Lock Nut		£1.87 £1.56
	18		HV501 51 72-01 Available to backorder	Chain Guide		£4.55 £3.79
	19		HV501 91 84-01 Available to backorder	Spike		£30.48 £25.40
	21		HV503 22 00-01 In stock	Hexagon Nut		£2.63 £2.19
	22		HV725 53 27-55 Available to backorder	Screw Ihscm		£1.56 £1.30
	23		HV501 87 47-01 In stock	Spring		£3.32 £2.77
	24		HV503 52 08-01 Available to backorder	Shaft		£4.50 £3.75
	25		HV501 76 80-01 Available to backorder	Shaft		£5.51 £4.59
	26		HV503 20 26-16 Available to backorder	Screw Ihscm		£1.79 £1.49

Description

Husqvarna 281XP

Model Year -

Chain Brake & Clutch Cover - Parts Diagram
