Husqvarna 272XP - Crankcase

Husqvarna 272XP - Crankcase
Husqvarna 272XP - Crankcase

Description

Husqvarna 272XP

Model Year -

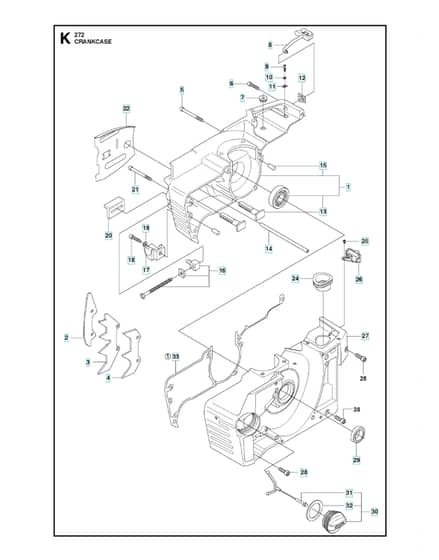

Crankcase - Parts Diagram

Ref. Img. Part No. Details
  3 Spike HV503 59 08-01
Spike
Out of stock
£19.22 £16.02

  4 Spike HV501 52 81-01
Spike
Out of stock
£14.32 £11.93

  7 Grommet HV503 69 76-01
Grommet
Out of stock
£3.76 £3.13

  8 Choke Control HV501 52 79-02
Choke Control
Out of stock
£6.40 £5.33

  9 Screw Ihscm HV725 52 93-56
Screw Ihscm
Out of stock
£1.51 £1.26

  10 Washer HV503 23 00-01
Washer
Out of stock
£2.26 £1.88

  12 Grommet HV501 52 78-01
Grommet
Out of stock
£3.76 £3.13

  13 Bar Bolt HV501 81 57-01
Bar Bolt
Out of stock
£4.85 £4.04

  14 Tank Vent Assy HV503 66 84-03
Tank Vent Assy
Out of stock
£14.53 £12.11

  15 Parallel Pin HV720 13 07-10
Parallel Pin
Out of stock
£1.32 £1.10

  16 Chain Tensioner Kit HV501 53 71-01
Chain Tensioner Kit
In stock
£24.66 £20.55

  17 Chain Catcher HV503 53 58-01
Chain Catcher
Out of stock
£4.98 £4.15

  19 Washer HV503 23 00-42
Washer
Out of stock
£2.33 £1.94

  20 Chain Guide HV501 51 72-01
Chain Guide
Out of stock
£4.39 £3.66

  21 Screw Ihscm HV725 53 41-55
Screw Ihscm
Out of stock
£3.00 £2.50

  22 Protective Plate HV501 81 48-01
Protective Plate
Out of stock
£6.08 £5.07

  24 Bellows HV503 44 50-01
Bellows
Out of stock
£7.46 £6.22

  25 Screw Ccrpant HV503 21 28-06
Screw Ccrpant
Out of stock
£1.52 £1.27

  26 Stop Switch HV503 71 79-01
Stop Switch
Out of stock
£15.14 £12.62

  27 Crankcase Assy HV501 77 99-01
Crankcase Assy
Out of stock
£272.88 £227.40

  28 Screw Ihscm HV725 53 27-55
Screw Ihscm
Out of stock
£1.74 £1.45

  29 Sealing Ring HV503 26 02-04
Sealing Ring
In stock
£14.28 £11.90

  30 Tank HV501 62 66-02
Tank
Out of stock
£12.43 £10.36

  31 Holder HV503 57 89-01
Holder
In stock
£5.35 £4.46

  32 Gasket HV501 62 68-01
Gasket
Out of stock
£4.63 £3.86

  33 Gasket Kit HV501 52 26-04
Gasket Kit
Out of stock
£20.12 £16.77


Description

Husqvarna 272XP

Model Year -

Crankcase - Parts Diagram
