Husqvarna 272XP - Chain Brake & Clutch Cover

Description

Husqvarna 272XP

Model Year -

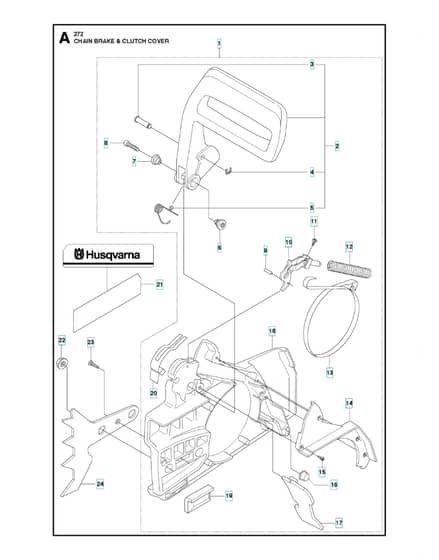

Chain Brake & Clutch Cover - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV503 73 66-01 Available to backorder	Clutch Cover Assy	£129.54 £107.95
0	HV721 42 52-50 Available to backorder	Spring Pin- Up To S/N 1994499999.	£1.28 £1.07
2	HV503 72 74-01 Available to backorder	Hand Guard Assy	£41.08 £34.23
3	HV503 80 27-01 Available to backorder	Pivot Pin	£5.04 £4.20
4	HV735 31 08-20 Available to backorder	E-Clip	£0.86 £0.72
5	HV506 16 48-01 Available to backorder	Position Spring	£4.44 £3.70
6	HV503 52 08-01 Available to backorder	Shaft	£4.22 £3.52
7	HV501 76 80-01 Available to backorder	Shaft	£5.56 £4.63
8	HV503 20 26-16 Available to backorder	Screw Ihscm	£1.82 £1.52
10	HV501 87 53-01 Available to backorder	Knee Joint Assy- Up To S/N 1994499999. Blue	£28.46 £23.72
12	HV503 70 99-02 Available to backorder	Brake Spring	£7.12 £5.93
12	HV503 46 59-01 Available to backorder	Brake Spring- Up To S/N 1994499999.	£5.68 £4.73
13	HV503 57 22-01 Available to backorder	Brake Band- Up To S/N 1994499999.	£14.22 £11.85
13	HV503 70 40-02 Available to backorder	Brake Band Assy	£14.22 £11.85
14	HV503 57 30-01 Available to backorder	Lid- Up To S/N 1994499999.	£7.20 £6.00
15	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.28 £1.07
16	HV503 72 31-01 Available to backorder	Bushing	£5.68 £4.73
17	HV503 73 05-01 Available to backorder	Chip Guard	£11.00 £9.17
18	HV503 70 46-01 Available to backorder	Clutch Cover	£38.18 £31.82
19	HV501 51 72-01 Available to backorder	Chain Guide	£4.80 £4.00
20	HV501 87 47-01 In stock	Spring	£3.28 £2.73
21	HV503 76 81-01 Available to backorder	Label	£3.56 £2.97
22	HV503 22 00-01 In stock	Hexagon Nut	£2.65 £2.21
23	HV725 53 27-55 Available to backorder	Screw Ihscm	£1.56 £1.30
24	HV503 59 07-01 Available to backorder	Spike	£24.24 £20.20
