Husqvarna 268 - 2018-Current - Chain Brake & Clutch Cover

Description

Husqvarna 268

Model Year - 2018-Current

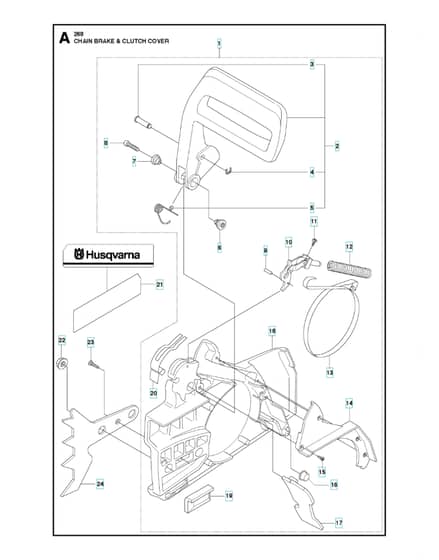

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
1	HV503 73 66-01 Available to backorder	Clutch Cover Assy	£124.08 £103.40
2	HV503 72 74-01 Available to backorder	Hand Guard Assy	£40.69 £33.91
3	HV503 80 27-01 Available to backorder	Pivot Pin	£5.02 £4.18
4	HV735 31 08-20 Available to backorder	E-Clip	£0.78 £0.65
5	HV506 16 48-01 Available to backorder	Position Spring	£4.57 £3.81
6	HV503 52 08-01 Available to backorder	Shaft	£4.50 £3.75
7	HV501 76 80-01 Available to backorder	Shaft	£5.51 £4.59
8	HV503 20 26-16 Available to backorder	Screw Ihscm	£1.79 £1.49

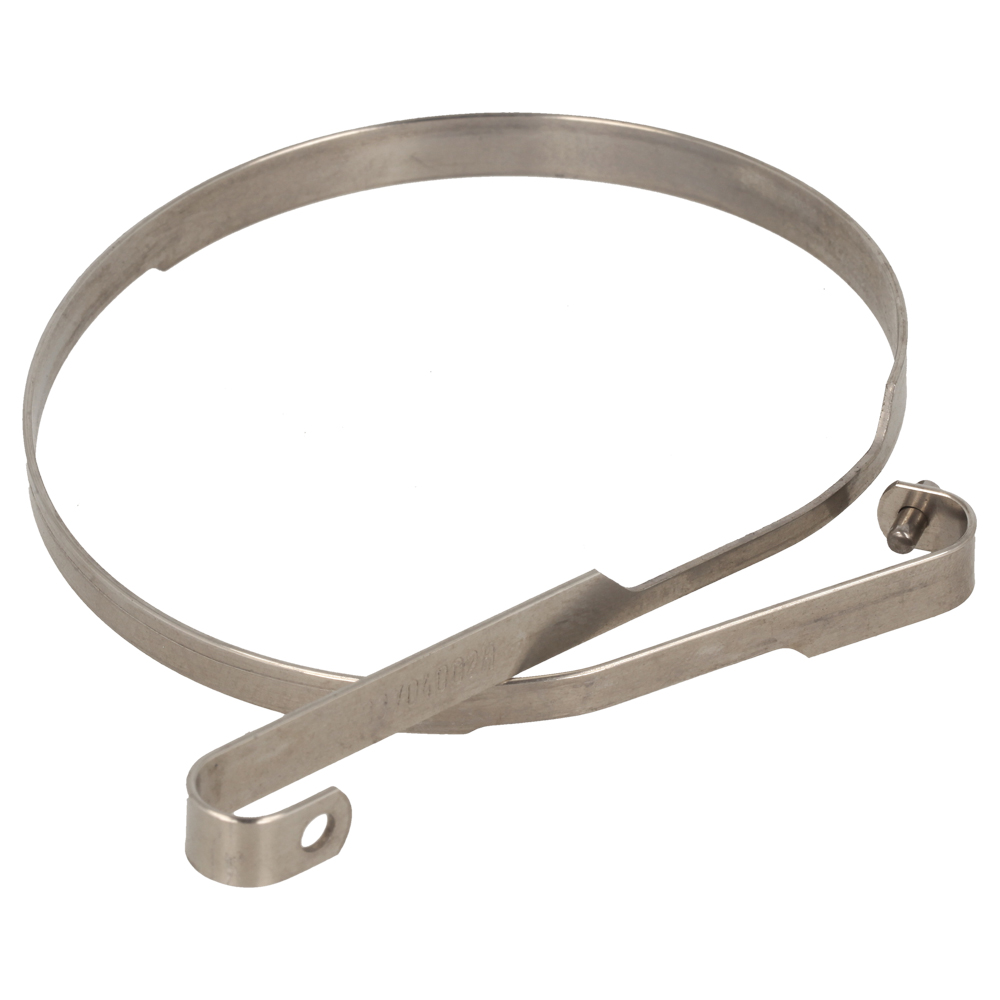

13	HV503 70 40-02 Available to backorder	Brake Band Assy	£14.10 £11.75
15	HV503 21 28-10 Available to backorder	Screw Ccrpant	£1.32 £1.10
16	HV503 72 31-01 Available to backorder	Bushing	£5.63 £4.69
17	HV503 73 05-01 Available to backorder	Chip Guard	£10.90 £9.08
18	HV503 70 46-01 Available to backorder	Clutch Cover	£37.81 £31.51
19	HV501 51 72-01 Available to backorder	Chain Guide	£4.55 £3.79
20	HV501 87 47-01 In stock	Spring	£3.32 £2.77

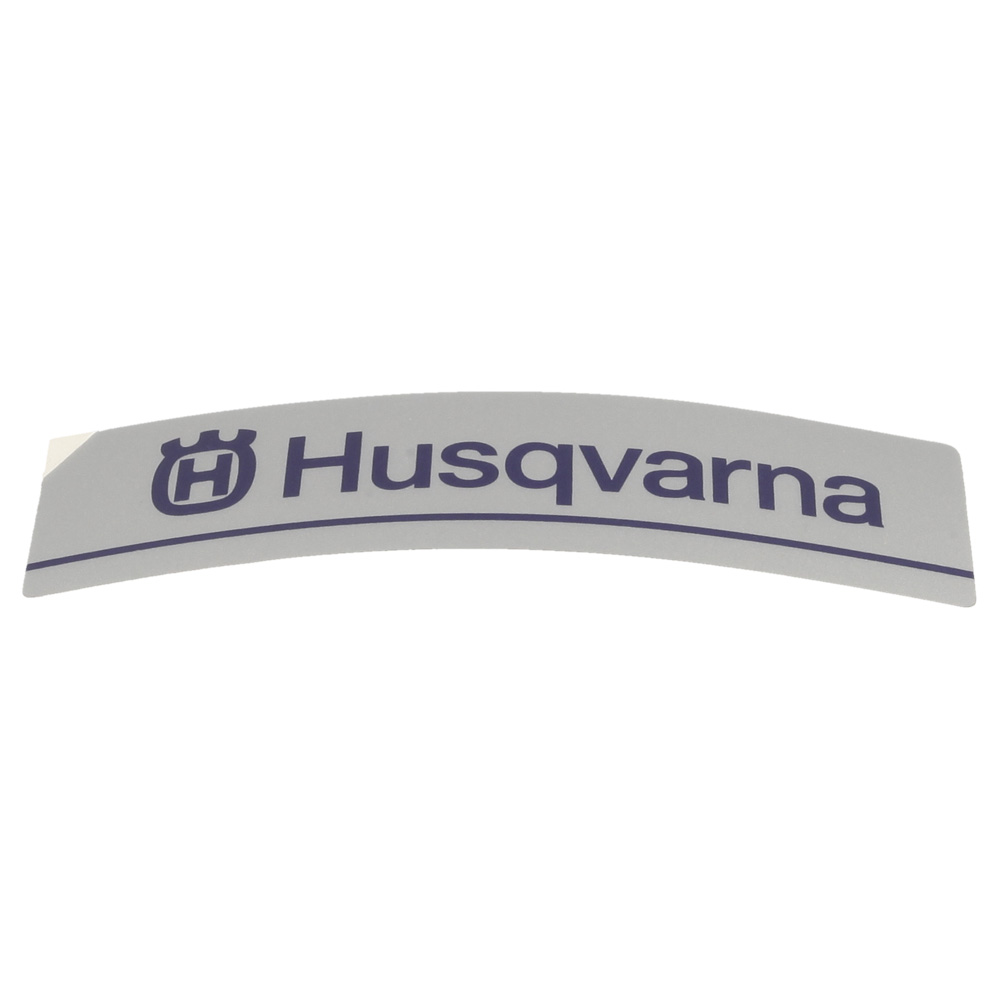

21	HV503 76 81-01 Available to backorder	Label	£3.66 £3.05
22	HV503 22 00-01 In stock	Hexagon Nut	£2.63 £2.19
23	HV725 53 27-55 Available to backorder	Screw Ihscm	£1.56 £1.30
24	HV503 59 07-01 Available to backorder	Spike	£24.00 £20.00
