Husqvarna 262XP - 1999-Current - Clutch & Oil Pump

Description

Husqvarna 262XP

Model Year - 1999-Current

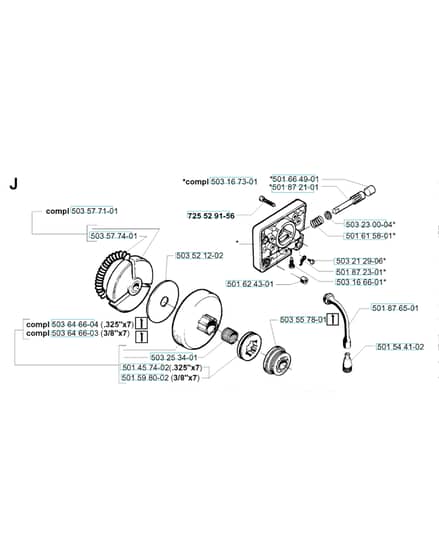

Clutch & Oil Pump - Parts Diagram

	Part No.	Details
501544102	HV501 54 41-02 Available to backorder	Oil Screen	£13.33 £11.11
501598002	HV501 59 80-02 Available to backorder	Rim3/8X7	£14.24 £11.87
501615801	HV501 61 58-01 Available to backorder	Spring	£3.32 £2.77
501664901	HV501 66 49-01 Available to backorder	Tätningspropp	£4.01 £3.34
501872101	HV501 87 21-01 Available to backorder	Pump Piston	£21.23 £17.69
501876501	HV501 87 65-01 Available to backorder	Oil Hose	£12.97 £10.81
503166601	HV503 16 66-01 Available to backorder	Pin Screw	£9.04 £7.53
503212906	HV503 21 29-06 Available to backorder	Screw Ccrpant	£1.28 £1.07
503230004	HV503 23 00-04 Available to backorder	Washer	£2.30 £1.92
503253401	HV503 25 34-01 In stock	Needle Bearing	£10.88 £9.07
503521202	HV503 52 12-02 Available to backorder	Washer	£7.70 £6.42
503557801	HV503 55 78-01 Available to backorder	Pump Pinion	£7.26 £6.05
503577101	HV503 57 71-01 Available to backorder	Clutch Assy	£63.36 £52.80
503577401	HV503 57 74-01 Available to backorder	Clutch Spring	£5.99 £4.99
