Husqvarna 257 - 2001-Current - Chain Brake

Husqvarna 257 - 2001-Current - Chain Brake

Part No. 257_2001_current_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 257 - 2001-Current - Chain Brake

Husqvarna 257 - 2001-Current - Chain Brake

Description

Husqvarna 257

Model Year - 2001-Current

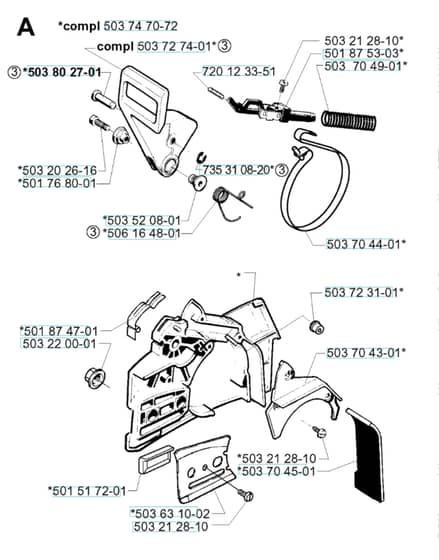

Chain Brake - Parts Diagram

Ref.		Img.	Part No.	Details
	501517201		HV501 51 72-01 Available to backorder	Chain Guide		£4.55 £3.79
	501768001		HV501 76 80-01 Available to backorder	Shaft		£5.51 £4.59
	501874701		HV501 87 47-01 In stock	Spring		£3.32 £2.77
	503202616		HV503 20 26-16 Available to backorder	Screw Ihscm		£1.79 £1.49
	503212810		HV503 21 28-10 Available to backorder	Screw Ccrpant		£1.32 £1.10
	503220001		HV503 22 00-01 In stock	Hexagon Nut		£2.63 £2.19
	503520801		HV503 52 08-01 Available to backorder	Shaft		£4.50 £3.75
	503631002		HV503 63 10-02 Available to backorder	Chain Guide Plate		£6.28 £5.23
	503704301		HV503 70 43-01 Available to backorder	Hub Cap		£8.45 £7.04
	503704401		HV503 70 44-01 Available to backorder	Brake Band Assy		£14.10 £11.75
	503704501		HV503 70 45-01 Available to backorder	Chip Guard		£6.19 £5.16
	503704901		HV503 70 49-01 Available to backorder	Brake Spring		£5.34 £4.45
	503723101		HV503 72 31-01 Available to backorder	Bushing		£5.63 £4.69
	503727401		HV503 72 74-01 Available to backorder	Hand Guard Assy		£40.69 £33.91
	503802701		HV503 80 27-01 Available to backorder	Pivot Pin		£5.02 £4.18
	506164801		HV506 16 48-01 Available to backorder	Position Spring		£4.57 £3.81
	735310820		HV735 31 08-20 Available to backorder	E-Clip		£0.78 £0.65

Description

Husqvarna 257

Model Year - 2001-Current

Chain Brake - Parts Diagram
