Husqvarna 246 - 2001-Current - Crankcase

Name: Husqvarna 246 - 2001-Current - Crankcase
SKU: 246_2001_current_crankcase-group
Price: 1.07 GBP
Availability: InStock

Part No. 246_2001_current_crankcase-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 246 - 2001-Current - Crankcase

Description

Husqvarna 246

Model Year - 2001-Current

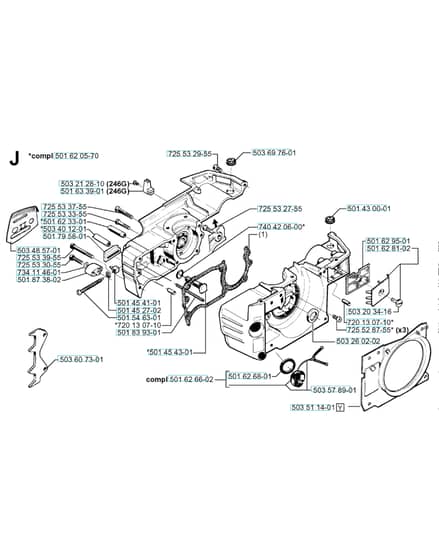

Crankcase - Parts Diagram

	Part No.	Details
501430001	HV501 43 00-01 Available to backorder	Cable Grommet	£3.84 £3.20
501452702	HV501 45 27-02 Available to backorder	Lock Nut	£2.99 £2.49
501454101	HV501 45 41-01 Available to backorder	Nut	£6.76 £5.63
501454301	HV501 45 43-01 Available to backorder	Bar Bolt	£4.63 £3.86
501546301	HV501 54 63-01 Available to backorder	Screw	£2.88 £2.40
501623301	HV501 62 33-01 Available to backorder	Spring Pin	£1.67 £1.39
501626602	HV501 62 66-02 Available to backorder	Tank	£13.03 £10.86
501626801	HV501 62 68-01 Available to backorder	Gasket	£4.63 £3.86
501795801	HV501 79 58-01 Available to backorder	Chain Guide	£3.97 £3.31
503203416	HV503 20 34-16 Available to backorder	Screw Ccrpanmo	£1.69 £1.41
503212810	HV503 21 28-10 Available to backorder	Screw Ccrpant246G	£1.32 £1.10
503260202	HV503 26 02-02 Available to backorder	Sealing Ring	£14.32 £11.93
503401201	HV503 40 12-01 Available to backorder	Spring Pin	£2.17 £1.81
503511401	HV503 51 14-01 Available to backorder	Bar	£12.97 £10.81
503578901	HV503 57 89-01 Available to backorder	Holder	£5.42 £4.52
503697601	HV503 69 76-01 Available to backorder	Grommet	£4.01 £3.34
720130710	HV720 13 07-10 Available to backorder	Parallel Pin	£1.32 £1.10
725528755	HV725 52 87-55 Available to backorder	Screw Ihscm	£1.28 £1.07
725532755	HV725 53 27-55 Available to backorder	Screw Ihscm	£1.56 £1.30
725532955	HV725 53 29-55 Available to backorder	Screw Ihscm	£2.36 £1.97
725533055	HV725 53 30-55 Available to backorder	Screw	£1.79 £1.49
725533355	HV725 53 33-55 In stock	Screw Ihscm	£2.00 £1.67
725533955	HV725 53 39-55 Available to backorder	Screw Ihscm	£2.83 £2.36
734114601	HV734 11 46-01 Available to backorder	Washer	£2.30 £1.92
740420600	HV740 42 06-00 Available to backorder	O-Ring1	£3.82 £3.18
