Husqvarna 246 - 2001-Current - Clutch & Oil Pump

Description

Husqvarna 246

Model Year - 2001-Current

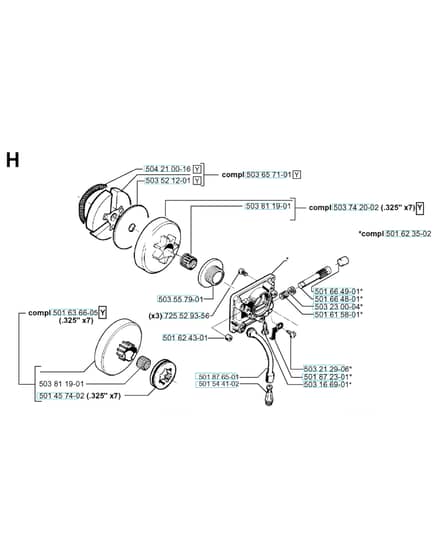

Clutch & Oil Pump - Parts Diagram

	Part No.	Details
501544102	HV501 54 41-02 Available to backorder	Oil Screen	£13.33 £11.11
501615801	HV501 61 58-01 Available to backorder	Spring	£3.32 £2.77
501636605	HV501 63 66-05 Available to backorder	Clutch Drum.325 X7	£50.09 £41.74
501664901	HV501 66 49-01 Available to backorder	Tätningspropp	£4.01 £3.34
501876501	HV501 87 65-01 Available to backorder	Oil Hose	£12.97 £10.81
503212906	HV503 21 29-06 Available to backorder	Screw Ccrpant	£1.28 £1.07
503230004	HV503 23 00-04 Available to backorder	Washer	£2.30 £1.92
503557901	HV503 55 79-01 Available to backorder	Pump Pinion	£12.54 £10.45
503657101	HV503 65 71-01 Available to backorder	Clutch Assy	£72.60 £60.50
503811901	HV503 81 19-01 Available to backorder	Needle Bearing	£11.16 £9.30
504210016	HV504 21 00-16 Available to backorder	Clutch Spring	£4.82 £4.02
725529356	HV725 52 93-56 Available to backorder	Screw Ihscm	£1.56 £1.30
