Husqvarna 246 - 2001-Current - Carburetor Details

Description

Husqvarna 246

Model Year - 2001-Current

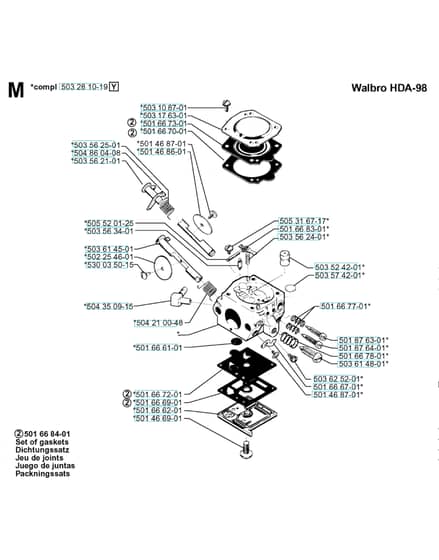

Carburetor Details - Parts Diagram

	Part No.	Details
501468701	HV501 46 87-01 Available to backorder	Screw	£1.28 £1.07
501666101	HV501 66 61-01 Available to backorder	Screen	£5.21 £4.34
501666201	HV501 66 62-01 Available to backorder	Cover	£19.48 £16.23
501666901	HV501 66 69-01 Available to backorder	Gasket501 66 84-01 Set Of Gaskets	£4.63 £3.86
501667001	HV501 66 70-01 Available to backorder	Gasket501 66 84-01 Set Of Gaskets	£4.63 £3.86
501667201	HV501 66 72-01 Available to backorder	Diaphragm501 66 84-01 Set Of Gaskets	£11.56 £9.63
501667301	HV501 66 73-01 Available to backorder	Diaphragm501 66 84-01 Set Of Gaskets	£17.23 £14.36
501667801	HV501 66 78-01 Available to backorder	Spring	£3.32 £2.77
501668301	HV501 66 83-01 Available to backorder	Lever	£5.78 £4.82
503176301	HV503 17 63-01 Available to backorder	Cover	£9.08 £7.57
503281019	HV503 28 10-19 Available to backorder	Carburettor	£92.64 £77.20
503524201	HV503 52 42-01 Available to backorder	Nozzle Assy	£14.10 £11.75
503562401	HV503 56 24-01 Available to backorder	Spring	£3.40 £2.83
503562501	HV503 56 25-01 Available to backorder	Spring	£3.32 £2.77
503563401	HV503 56 34-01 Available to backorder	Needle Valve	£9.16 £7.63
503574201	HV503 57 42-01 Available to backorder	Plug	£4.52 £3.77
505520125	HV505 52 01-25 Available to backorder	Pin	£4.52 £3.77
530035015	HV530 03 50-15 Available to backorder	Screw	£1.13 £0.94
