Husqvarna 245 - 2001-Current - Handle & Controls

Description

Husqvarna 245

Model Year - 2001-Current

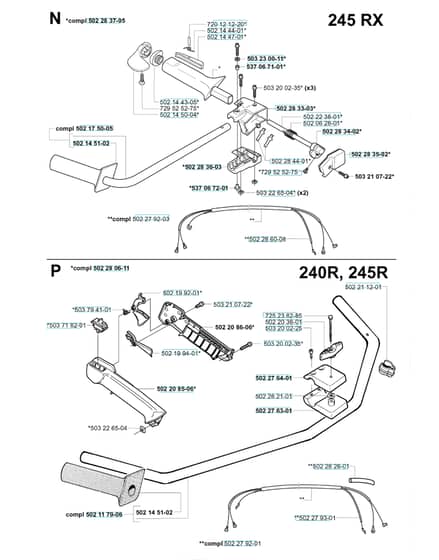

Handle & Controls - Parts Diagram

	Part No.	Details
502	HV502 27 93-01 Available to backorder	Gas Wire Assy	£39.14 £32.62
502	HV502 28 60-08 Available to backorder	Gas Wire	£35.88 £29.90
502	HV502 19 92-01 Available to backorder	Throttle Trigger	£8.32 £6.93
502	HV502 21 12-01 Available to backorder	Staple	£0.90 £0.75
502	HV502 28 21-01 Available to backorder	Washer	£2.41 £2.01
502	HV502 06 28-01 Available to backorder	Recoil Spring	£3.73 £3.11
502	HV502 19 94-01 Available to backorder	Throttle Lockout	£6.62 £5.52
502	HV502 22 38-01 Available to backorder	Pipe	£16.21 £13.51
502	HV502 28 36-03 Available to backorder	Clamp	£1.67 £1.39
502	HV502 14 50-04 Available to backorder	Throttle Trigger	£7.70 £6.42
502	HV502 20 38-01 Available to backorder	Knob	£7.18 £5.98
503	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
503	HV503 20 02-25 In stock	Screw Ihscfm	£2.35 £1.96
503	HV503 23 00-11 Available to backorder	Washer	£2.36 £1.97
503	HV503 20 02-35 Available to backorder	Screw Ihscfm	£2.56 £2.13
503	HV503 71 82-01 Available to backorder	Switch	£16.98 £14.15
729	HV729 52 52-75 Available to backorder	Screw Crpant	£1.28 £1.07
