Husqvarna 245 - 2001-Current - Carburetor Details

Description

Husqvarna 245

Model Year - 2001-Current

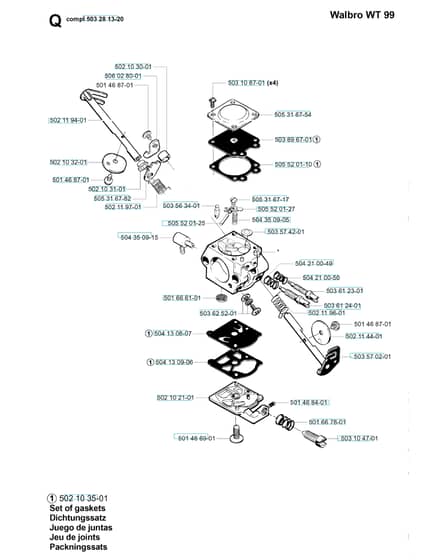

Carburetor Details - Parts Diagram

	Part No.	Details
501	HV501 66 61-01 Available to backorder	Screen	£5.21 £4.34
501	HV501 46 84-01 Available to backorder	Spring	£2.88 £2.40
501	HV501 66 78-01 Available to backorder	Spring	£3.32 £2.77
501	HV501 46 87-01 Available to backorder	Screw	£1.28 £1.07
502	HV502 10 35-01 Available to backorder	Gasket Kit	£12.73 £10.61
502	HV502 10 31-01 Available to backorder	Bushing	£4.94 £4.12
502	HV502 10 32-01 Available to backorder	Choke Skiva	£7.74 £6.45
502	HV502 10 30-01 Available to backorder	Distance	£5.63 £4.69
503	HV503 56 34-01 Available to backorder	Needle Valve	£9.16 £7.63
503	HV503 61 24-01 Available to backorder	Needle-High Speed	£11.99 £9.99
503	HV503 10 47-01 Available to backorder	Screw	£1.79 £1.49
503	HV503 57 42-01 Available to backorder	Plug	£4.52 £3.77
503	HV503 89 67-01 Available to backorder	Diaphragm502 10 35-01 Set Of Gaskets	£3.12 £2.60
503	HV503 28 13-20 Available to backorder	Carburettor	£85.80 £71.50
503	HV503 61 23-01 Available to backorder	Needle Idle Speed	£10.58 £8.82
504	HV504 21 00-49 Available to backorder	Spring	£3.32 £2.77
504	HV504 21 00-50 Available to backorder	Spring	£3.32 £2.77
504	HV504 13 09-06 Available to backorder	Gasket502 10 35-01 Set Of Gaskets	£4.63 £3.86
504	HV504 35 09-05 Available to backorder	Spring	£3.32 £2.77
505	HV505 31 67-54 Available to backorder	Lock Styrmembran	£8.45 £7.04
505	HV505 52 01-27 Available to backorder	Lever	£5.38 £4.48
505	HV505 52 01-10 Available to backorder	Gasket502 10 35-01 Set Of Gaskets	£4.32 £3.60
505	HV505 52 01-25 Available to backorder	Pin	£4.52 £3.77
506	HV506 02 80-01 Available to backorder	Startgasarm	£11.03 £9.19
