Husqvarna 245 - 2001-Current - Bevel Gear & Shaft

Name: Husqvarna 245 - 2001-Current - Bevel Gear & Shaft
SKU: 245_2001_current_bevel_gear_shaft-group
Price: 0.63 GBP
Availability: InStock

Part No. 245_2001_current_bevel_gear_shaft-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 245 - 2001-Current - Bevel Gear & Shaft

Description

Husqvarna 245

Model Year - 2001-Current

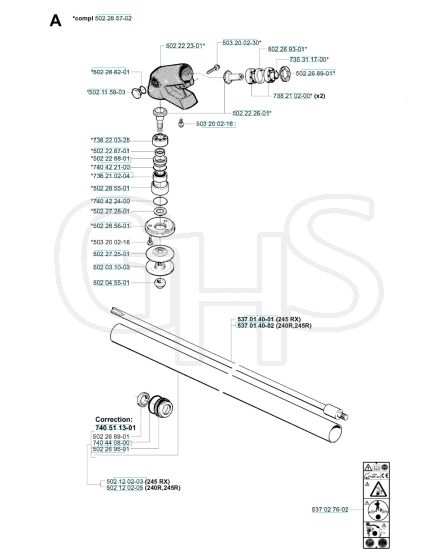

Bevel Gear & Shaft - Parts Diagram

	Part No.	Details
502	HV502 12 02-05 Available to backorder	Tube Assy240R.245R	£143.88 £119.90
502	HV502 26 95-01 Available to backorder	Sealing Ring Holder	£4.16 £3.47
502	HV502 28 56-01 Available to backorder	Cup	£11.96 £9.97
502	HV502 03 10-03 Available to backorder	Support Flange	£29.27 £24.39
502	HV502 22 23-01 Available to backorder	Gear Housing	£109.20 £91.00
502	HV502 27 25-01 Available to backorder	Driver	£51.19 £42.66
502	HV502 28 62-01 Available to backorder	Washer	£2.30 £1.92
502	HV537 54 39-01 Available to backorder	Nut	£2.51 £2.09
502	HV502 22 26-01 Available to backorder	Gear Wheel	£68.88 £57.40
502	HV502 27 28-01 Available to backorder	Washer	£3.79 £3.16
503	HV503 20 02-30 Available to backorder	Screw Ihscfm	£2.56 £2.13
537	HV537 01 40-02 Available to backorder	Drive Shaft Assy240R.245R	£102.84 £85.70
735	HV735 31 17-00 In stock	Circlip	£0.76 £0.63
738	HV738 22 03-25 Available to backorder	Ball Bearing	£8.03 £6.69
738	HV738 21 02-04 Available to backorder	Ball Bearing	£6.97 £5.81
740	HV740 44 08-00 Available to backorder	O-Ring	£3.82 £3.18
740	HV740 42 21-00 Available to backorder	O-Ring	£3.82 £3.18
740	HV740 42 24-00 Available to backorder	O-Ring	£3.95 £3.29
