Husqvarna 240F - Bevel Gear

Husqvarna 240F - Bevel Gear

Part No. 240f_bevel_gear-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 240F - Bevel Gear

Husqvarna 240F - Bevel Gear

Description

Husqvarna 240F

Model Year -

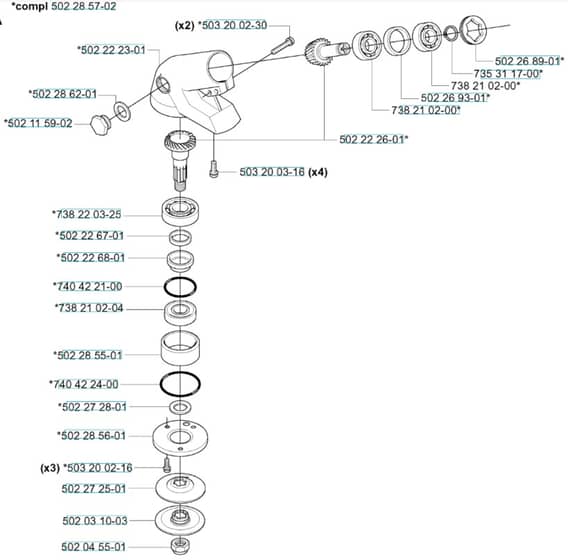

Bevel Gear - Parts Diagram

Ref.		Img.	Part No.	Details
	502		HV502 03 10-03 Available to backorder	Support Flange		£29.27 £24.39
	502		HV502 22 23-01 Available to backorder	Gear Housing		£109.20 £91.00
	502		HV502 27 28-01 Available to backorder	Washer		£3.79 £3.16
	502		HV537 54 39-01 Available to backorder	Nut		£2.51 £2.09
	502		HV502 22 26-01 Available to backorder	Gear Wheel		£68.88 £57.40
	502		HV502 28 56-01 Available to backorder	Cup		£11.96 £9.97
	502		HV502 11 59-02 Available to backorder	Plug		£10.90 £9.08
	502		HV502 27 25-01 Available to backorder	Driver		£51.19 £42.66
	502		HV502 28 62-01 Available to backorder	Washer		£2.30 £1.92
	503		HV503 20 02-30 Available to backorder	Screw Ihscfm		£2.56 £2.13
	503		HV503 20 03-16 Available to backorder	Screw Ihscfm		£2.09 £1.74
	735		HV735 31 17-00 In stock	Circlip		£0.76 £0.63
	738		HV738 21 02-04 Available to backorder	Ball Bearing		£6.97 £5.81
	738		HV738 22 03-25 Available to backorder	Ball Bearing		£8.03 £6.69
	740		HV740 42 24-00 Available to backorder	O-Ring		£3.95 £3.29
	740		HV740 42 21-00 Available to backorder	O-Ring		£3.82 £3.18

Description

Husqvarna 240F

Model Year -

Bevel Gear - Parts Diagram
