Husqvarna 240E-SERIES - Carburetor & Air Filter

Name: Husqvarna 240E-SERIES - Carburetor & Air Filter
SKU: 240e_series_carburetor_air_filter-group
Price: 1.3 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 240E-SERIES - Carburetor & Air Filter

Description

Husqvarna 240E-SERIES

Model Year -

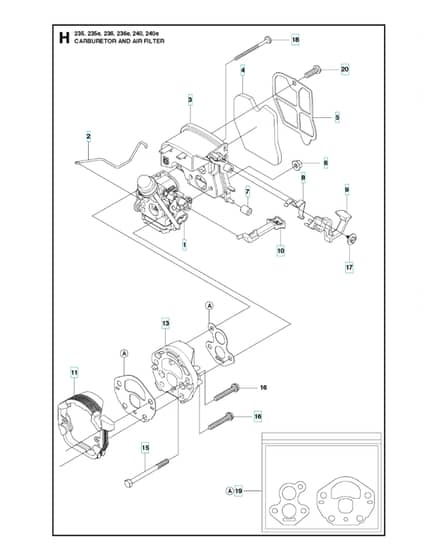

Carburetor & Air Filter - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV586 93 62-02 In stock	Carburettor	£75.62 £63.02
4	HV545 06 18-01 In stock	Air Filter	£7.44 £6.20
5	HV545 15 18-01 Available to backorder	Filter	£7.63 £6.36
6	HV530 01 61-01 Available to backorder	Nut	£1.82 £1.52
7	HV545 06 19-01 Available to backorder	Isolator	£1.72 £1.43
8	HV545 06 34-01 Available to backorder	Switch. Spring	£3.02 £2.52
9	HV545 06 17-01 Available to backorder	Switch Lever	£6.46 £5.38
10	HV545 06 16-01 Available to backorder	Choke Knob	£6.46 £5.38
11	HV545 06 15-01 Available to backorder	Carb Adaptor Seal	£4.72 £3.93
13	HV577 63 65-01 Available to backorder	Adaptor	£15.12 £12.60
16	HV545 15 83-01 Available to backorder	Carb Adaptor Screw	£2.34 £1.95
17	HV530 01 60-80 Available to backorder	Screw	£1.56 £1.30
18	HV545 07 49-01 Available to backorder	Top Stud-Carburetor	£2.08 £1.73
19	HV545 08 18-92 In stock	Gasket Kit	£16.76 £13.97
20	HV530 01 63-49 Available to backorder	Screw	£1.82 £1.52
