Husqvarna 240 L - Bevel Gear

Husqvarna 240 L - Bevel Gear

Part No. 240_l_current_bevel_gear-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 240 L - Bevel Gear

Husqvarna 240 L - Bevel Gear

Description

Husqvarna 240 L

Model Year - Current

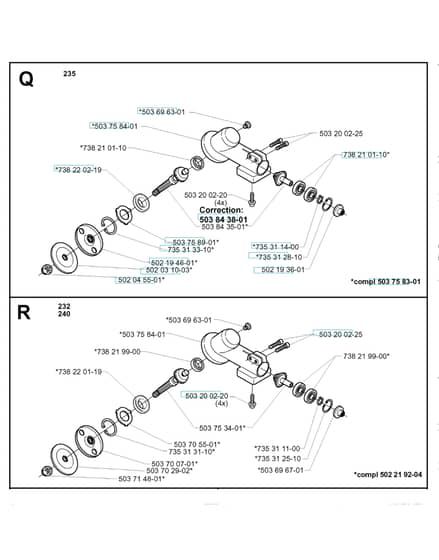

Bevel Gear - Parts Diagram

Ref.		Img.	Part No.	Details
	502		HV502 03 10-03 Available to backorder	Support Flange		£29.27 £24.39
	502		HV537 54 39-01 Available to backorder	Nut		£2.51 £2.09
	503		HV503 20 02-20 Available to backorder	Screw Ihscfm4X		£2.14 £1.78
	503		HV503 75 89-01 Available to backorder	Cover Washer		£2.30 £1.92
	503		HV503 20 02-25 In stock	Screw Ihscfm		£2.35 £1.96
	503		HV503 84 38-01 Available to backorder	Gear Wheel		£70.92 £59.10
	503		HV503 75 84-01 Available to backorder	Gear Housing		£92.52 £77.10
	735		HV735 31 28-10 Available to backorder	Circlip		£3.59 £2.99
	735		HV735 31 33-10 Available to backorder	Circlip		£0.90 £0.75
	735		HV735 31 14-00 Available to backorder	Circlip		£0.78 £0.65
	738		HV738 22 02-19 Available to backorder	Ball Bearing		£8.71 £7.26
	738		HV738 21 01-10 Available to backorder	Ball Bearing		£6.31 £5.26

Description

Husqvarna 240 L

Model Year - Current

Bevel Gear - Parts Diagram
