Husqvarna 235FR - 2009-Current - Throttle Controls

Description

Husqvarna 235FR

Model Year - 2009-Current

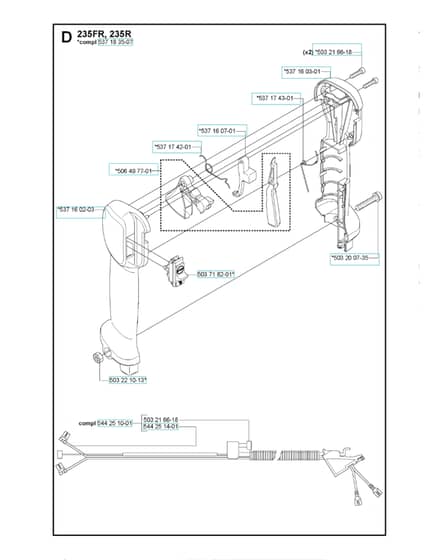

Throttle Controls - Parts Diagram

	Part No.	Details
503	HV503 21 66-18 Available to backorder	Screw Ihsct	£1.79 £1.49
503	HV503 22 10-13 Available to backorder	Hexagon Nut	£2.09 £1.74
503	HV503 71 82-01 Available to backorder	Switch	£16.98 £14.15
506	HV506 49 77-01 Available to backorder	Throttle Control	£8.34 £6.95
537	HV537 18 35-07 Available to backorder	Handle Assy	£49.60 £41.33
537	HV537 16 03-01 Available to backorder	Handle Half	£20.66 £17.22
537	HV537 17 42-01 Available to backorder	Spring Throttle Trig	£3.12 £2.60
537	HV537 16 02-03 Available to backorder	Handle Half	£21.78 £18.15
537	HV537 17 43-01 Available to backorder	Spring	£3.31 £2.76
544	HV544 25 10-01 Available to backorder	Wiring Assy	£40.38 £33.65
