Husqvarna 235 - 2014-Current - Handle & Controls

Name: Husqvarna 235 - 2014-Current - Handle & Controls
SKU: 235_2014_current_handle_controls-group
Price: 1.3 GBP
Availability: InStock

Part No. 235_2014_current_handle_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 235 - 2014-Current - Handle & Controls

Description

Husqvarna 235

Model Year - 2014-Current

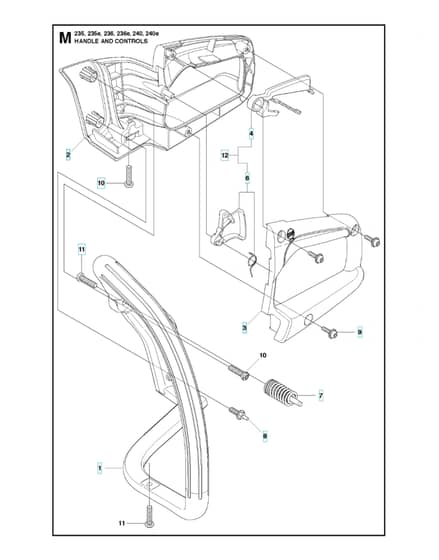

Handle & Controls - Parts Diagram

	Part No.	Details
1	HV545 06 24-01 Available to backorder	Front Handle	£61.90 £51.58
2	HV545 06 22-02 Available to backorder	Rear Handle W/Ovmld 240E	£24.66 £20.55
2	HV545 06 22-01 Available to backorder	Rear Handle	£28.20 £23.50
3	HV545 06 23-01 Available to backorder	Rear Handle Cover 235/235E	£10.37 £8.64
3	HV545 06 23-02 Available to backorder	Rear Handle Cover W/Ovmld 240E	£9.73 £8.11
6	HV578 24 67-01 Available to backorder	Trigger	£8.34 £6.95
7	HV545 03 39-01 Available to backorder	Isolator	£16.69 £13.91
8	HV545 07 63-01 Available to backorder	Isolation Limiter Screw	£1.62 £1.35
9	HV530 01 64-33 Available to backorder	Screw	£1.79 £1.49
10	HV530 01 63-49 Available to backorder	Screw	£1.56 £1.30
11	HV530 01 64-32 Available to backorder	Screw	£2.09 £1.74
12	HV578 86 22-01 Available to backorder	Kit	£7.31 £6.09
