Husqvarna 235 - 2014-Current - Carburetor & Air Filter

Description

Husqvarna 235

Model Year - 2014-Current

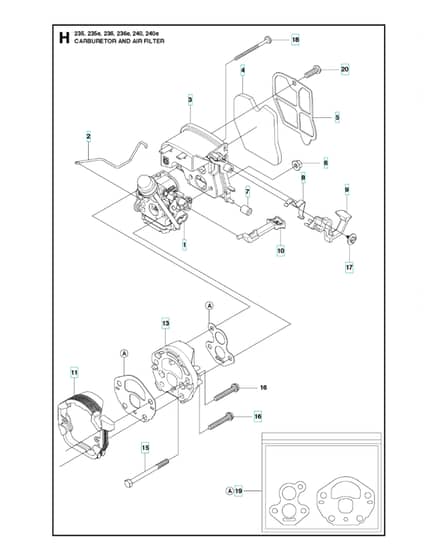

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
1	HV586 93 62-02 In stock	Carburettor	£62.57 £52.14
4	HV545 06 18-01 In stock	Air Filter	£6.32 £5.27
5	HV545 15 18-01 Available to backorder	Filter	£7.70 £6.42
6	HV530 01 61-01 Available to backorder	Nut	£1.56 £1.30
7	HV545 06 19-01 Available to backorder	Isolator	£1.68 £1.40
8	HV545 06 34-01 Available to backorder	Switch. Spring	£2.52 £2.10
9	HV545 06 17-01 Available to backorder	Switch Lever	£6.68 £5.57
10	HV545 06 16-01 Available to backorder	Choke Knob	£6.40 £5.33
11	HV545 06 15-01 Available to backorder	Carb Adaptor Seal	£4.67 £3.89
16	HV545 15 83-01 Available to backorder	Carb Adaptor Screw	£2.30 £1.92
17	HV530 01 60-80 Available to backorder	Screw	£1.56 £1.30
18	HV545 07 49-01 Available to backorder	Top Stud-Carburetor	£2.06 £1.72
19	HV545 08 18-92 In stock	Gasket Kit	£14.38 £11.98
20	HV530 01 63-49 Available to backorder	Screw	£1.56 £1.30
