Husqvarna 232R - 2006-2006 - Bevel Gear & Shaft

Name: Husqvarna 232R - 2006-2006 - Bevel Gear & Shaft
SKU: 232r_2006_2006_bevel_gear_shaft-group
Price: 0.64 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 232R - 2006-2006 - Bevel Gear & Shaft

Description

Husqvarna 232R

Model Year - 2006-2006

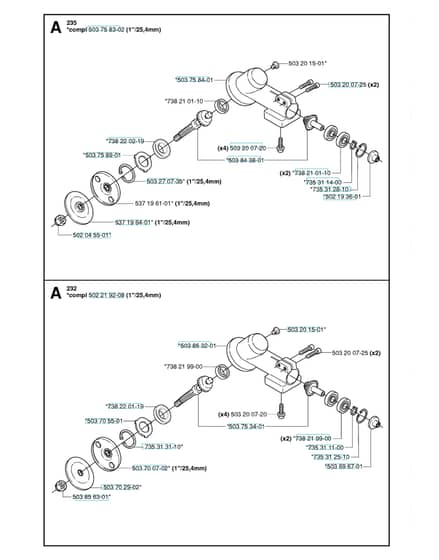

Bevel Gear & Shaft - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV537 19 61-01 Available to backorder	Driver	£34.22 £28.52
502	HV537 54 39-01 Available to backorder	Nut	£2.63 £2.19
502	HV502 21 92-08 Available to backorder	Gear	£169.08 £140.90
503	HV503 75 84-01 Available to backorder	Gear Housing	£96.62 £80.52
503	HV503 85 32-01 Available to backorder	Gear Housing	£85.22 £71.02
503	HV503 20 07-25 Available to backorder	Screw Ihscfm	£2.34 £1.95
503	HV503 70 29-02 Available to backorder	Support Flange	£22.14 £18.45
503	HV503 75 89-01 Available to backorder	Cover Washer	£2.34 £1.95
503	HV503 85 63-01 In stock	Nut	£5.76 £4.80
503	HV503 20 15-01 Available to backorder	Screw	£5.82 £4.85
503	HV503 75 83-02 Available to backorder	Gear	£155.66 £129.72
503	HV503 84 38-01 Available to backorder	Gear Wheel	£74.14 £61.78
503	HV503 70 07-02 Available to backorder	Driver	£49.79 £41.49
537	HV537 19 64-01 Available to backorder	Support Flange	£22.14 £18.45
735	HV735 31 25-10 Available to backorder	Circlip	£0.77 £0.64
735	HV735 31 11-00 Available to backorder	Circlip	£0.77 £0.64
735	HV735 31 28-10 Available to backorder	Circlip	£3.68 £3.07
735	HV735 31 14-00 Available to backorder	Circlip	£0.77 £0.64
735	HV735 31 31-10 Available to backorder	Circlip	£0.77 £0.64
738	HV738 21 01-10 Available to backorder	Ball Bearing	£6.36 £5.30
738	HV738 22 02-19 Available to backorder	Ball Bearing	£8.20 £6.83
738	HV738 21 99-00 Available to backorder	Ball Bearing	£6.36 £5.30
738	HV738 22 01-19 Available to backorder	Ball Bearing	£7.96 £6.63
