Husqvarna 232R - 2000-2002 - Carburetor & Air Filter

Name: Husqvarna 232R - 2000-2002 - Carburetor & Air Filter
SKU: 232r_2000_2002_carburetor_air_filter-group
Price: 1.08 GBP
Availability: InStock

Part No. 232r_2000_2002_carburetor_air_filter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 232R - 2000-2002 - Carburetor & Air Filter

Description

Husqvarna 232R

Model Year - 2000-2002

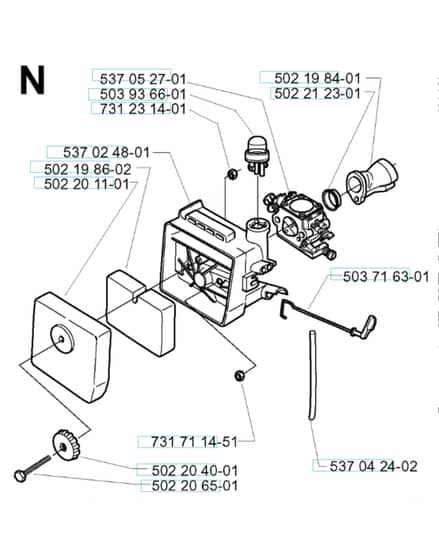

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
502	HV502 20 11-01 Available to backorder	Filter Cover	£8.98 £7.48
502	HV502 19 84-01 Available to backorder	Inlet Pipe	£19.88 £16.57
502	HV502 20 40-01 In stock	Knob	£6.22 £5.18
502	HV502 19 86-02 In stock	Air Filter	£7.93 £6.61
502	HV502 21 23-01 Available to backorder	Support Ring	£3.82 £3.18
503	HV503 71 63-01 Available to backorder	Choke Control	£6.40 £5.33
503	HV503 93 66-01 In stock	Purge	£15.11 £12.59
537	HV537 04 24-02 Available to backorder	Fuel Hose	£4.61 £3.84
537	HV537 02 48-01 Available to backorder	Filter Holder	£13.46 £11.22
731	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
731	HV731 71 14-51 Available to backorder	Hexagon Nut Flange	£1.84 £1.53
