Husqvarna 232R - 1995-1997 - Carburetor Details

Name: Husqvarna 232R - 1995-1997 - Carburetor Details
SKU: 232r_1995_1997_carburetor_details-group
Price: 1.07 GBP
Availability: InStock

Part No. 232r_1995_1997_carburetor_details-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 232R - 1995-1997 - Carburetor Details

Description

Husqvarna 232R

Model Year - 1995-1997

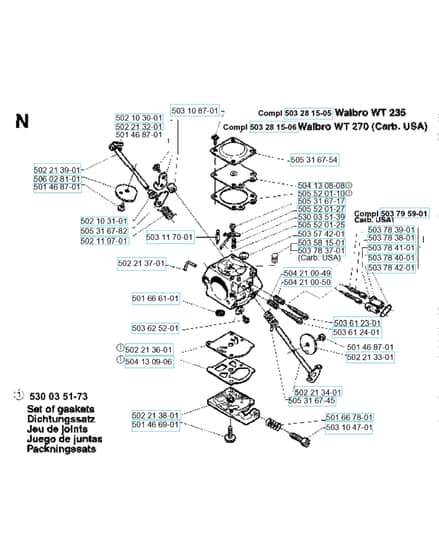

Carburetor Details - Parts Diagram

	Part No.	Details
501	HV501 66 78-01 Available to backorder	Spring	£3.32 £2.77
501	HV501 46 87-01 Available to backorder	Screw	£1.28 £1.07
501	HV501 66 61-01 Available to backorder	Screen	£5.21 £4.34
502	HV502 21 32-01 Available to backorder	Lever Throttle	£7.74 £6.45
502	HV502 10 30-01 Available to backorder	Distance	£5.63 £4.69
502	HV502 21 36-01 Available to backorder	Diaphragm Pump530 03 51-73 Set Of Gaskets	£7.96 £6.63
502	HV502 10 31-01 Available to backorder	Bushing	£4.94 £4.12
503	HV503 11 70-01 Available to backorder	Needle Valve	£10.58 £8.82
503	HV503 61 24-01 Available to backorder	Needle-High Speed	£11.99 £9.99
503	HV503 57 42-01 Available to backorder	Plug	£4.52 £3.77
503	HV503 10 47-01 Available to backorder	Screw	£1.79 £1.49
503	HV503 61 23-01 Available to backorder	Needle Idle Speed	£10.58 £8.82
504	HV504 21 00-50 Available to backorder	Spring	£3.32 £2.77
504	HV504 13 09-06 Available to backorder	Gasket530 03 51-73 Set Of Gaskets	£4.63 £3.86
504	HV504 21 00-49 Available to backorder	Spring	£3.32 £2.77
505	HV505 52 01-25 Available to backorder	Pin	£4.52 £3.77
505	HV505 31 67-54 Available to backorder	Lock Styrmembran	£8.45 £7.04
505	HV505 52 01-27 Available to backorder	Lever	£5.38 £4.48
505	HV505 52 01-10 Available to backorder	Gasket530 03 51-73 Set Of Gaskets	£4.32 £3.60
