Husqvarna 227R - 2002-Current - Carburetor & Air Filter

Description

Husqvarna 227R

Model Year - 2002-Current

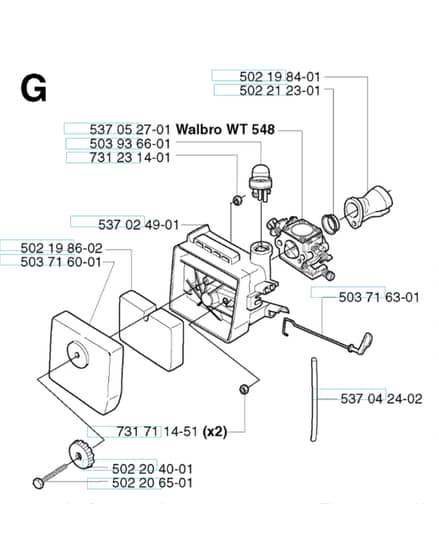

Carburetor & Air Filter - Parts Diagram

	Part No.	Details
502	HV502 19 84-01 Available to backorder	Inlet Pipe	£19.88 £16.57
502	HV502 21 23-01 Available to backorder	Support Ring	£3.82 £3.18
502	HV502 19 86-02 In stock	Air Filter	£7.93 £6.61
502	HV502 20 40-01 In stock	Knob	£6.22 £5.18
503	HV503 93 66-01 In stock	Purge	£15.11 £12.59
503	HV503 71 60-01 Available to backorder	Filter Cover	£8.29 £6.91
503	HV503 71 63-01 Available to backorder	Choke Control	£6.40 £5.33
537	HV537 02 49-01 Available to backorder	Filter Holder	£8.98 £7.48
537	HV537 04 24-02 Available to backorder	Fuel Hose	£4.61 £3.84
731	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
731	HV731 71 14-51 Available to backorder	Hexagon Nut Flange	£1.84 £1.53
