Husqvarna 225H75 - Gear Housing

Husqvarna 225H75 - Gear Housing

Part No. 225h75_gear_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 225H75 - Gear Housing

Husqvarna 225H75 - Gear Housing

Description

Husqvarna 225H75

Model Year - - 20022200001-Current

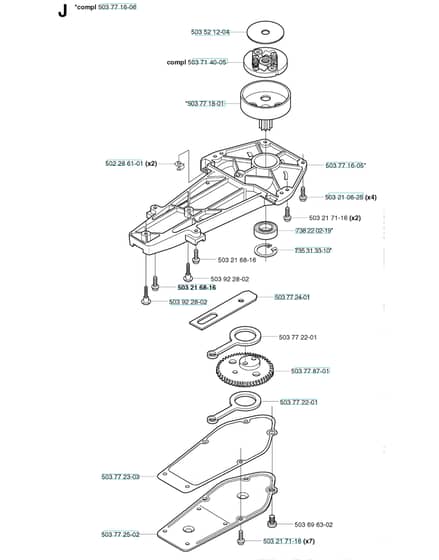

Gear Housing - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV503 69 63-02 Available to backorder	Plug		£2.56 £2.13
	502		HV502 28 61-01 Available to backorder	Clip		£0.77 £0.64
	503		HV503 21 68-16 Available to backorder	Screw Ihsct		£1.82 £1.52
	503		HV503 71 40-05 Available to backorder	Clutch Assy		£63.36 £52.80
	503		HV503 77 87-01 Available to backorder	Eccentric		£61.32 £51.10
	503		HV503 21 71-16 Available to backorder	Screw Ihsct		£1.54 £1.28
	503		HV503 77 23-03 Available to backorder	Gasket		£5.99 £4.99
	503		HV503 77 24-01 Available to backorder	Wear Protection		£7.06 £5.88
	735		HV735 31 33-10 Available to backorder	Circlip		£0.90 £0.75
	738		HV738 22 02-19 Available to backorder	Ball Bearing		£8.71 £7.26

Description

Husqvarna 225H75

Model Year - - 20022200001-Current

Gear Housing - Parts Diagram
