Husqvarna 225 Ld - Shaft & Handle

Husqvarna 225 Ld - Shaft & Handle

Part No. 225_ld_current_shaft_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 225 Ld - Shaft & Handle

Husqvarna 225 Ld - Shaft & Handle

Description

Husqvarna 225 Ld

Model Year - Current

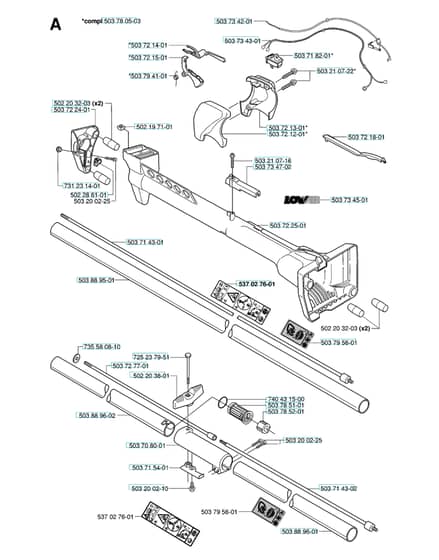

Shaft & Handle - Parts Diagram

Ref.		Img.	Part No.	Details
	502		HV502 28 61-01 Available to backorder	Clip		£0.77 £0.64
	502		HV502 19 71-01 In stock	Square Nut		£5.15 £4.29
	502		HV502 20 38-01 Available to backorder	Knob		£7.18 £5.98
	503		HV503 21 07-16 Available to backorder	Screw Ihsct		£2.09 £1.74
	503		HV503 71 82-01 Available to backorder	Switch		£16.98 £14.15
	503		HV503 72 15-01 Available to backorder	Throttle Trigger		£8.69 £7.24
	503		HV503 73 42-01 Available to backorder	Throttle Cable Assy		£27.55 £22.96
	503		HV503 78 05-03 Available to backorder	Handle		£42.94 £35.78
	503		HV503 20 07-10 Available to backorder	Screw Ihscfm		£1.78 £1.48
	503		HV503 71 43-01 Available to backorder	Drive Shaft Assy		£65.52 £54.60
	503		HV503 72 12-01 Available to backorder	Handle Half		£14.10 £11.75
	503		HV503 72 18-01 Available to backorder	Cover		£7.14 £5.95
	503		HV503 73 43-01 Available to backorder	Short Circuit Cable		£11.03 £9.19
	503		HV503 88 96-01 Available to backorder	Tube		£69.36 £57.80
	503		HV503 20 02-25 In stock	Screw Ihscfm		£2.35 £1.96
	503		HV503 71 43-02 Available to backorder	Drive Shaft Assy		£63.96 £53.30
	503		HV503 72 14-01 Available to backorder	Throttle Lockout		£7.06 £5.88
	503		HV503 72 24-01 Available to backorder	Holder Antivibration		£14.27 £11.89
	503		HV503 73 45-01 Available to backorder	Label		£2.69 £2.24
	725		HV725 23 79-51 Available to backorder	Screw Ehhm		£4.06 £3.38
	731		HV731 23 14-01 In stock	Hexagon Nut		£1.30 £1.08
	735		HV735 58 08-10 Available to backorder	Lockwasher		£0.77 £0.64

Description

Husqvarna 225 Ld

Model Year - Current

Shaft & Handle - Parts Diagram
