Husqvarna 225 B - X-SERIES 2001-Current - Handle / Controls

Name: Husqvarna 225 B - X-SERIES 2001-Current - Handle / Controls
Brand: Bosch
SKU: 225 B - X-SERIES 20012200001-Current - Handle / Controls-group
Price: 1.9 GBP
Availability: InStock

Part No. 225 B - X-SERIES 20012200001-Current - Handle / Controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 225 B - X-SERIES 2001-Current - Handle / Controls

Description

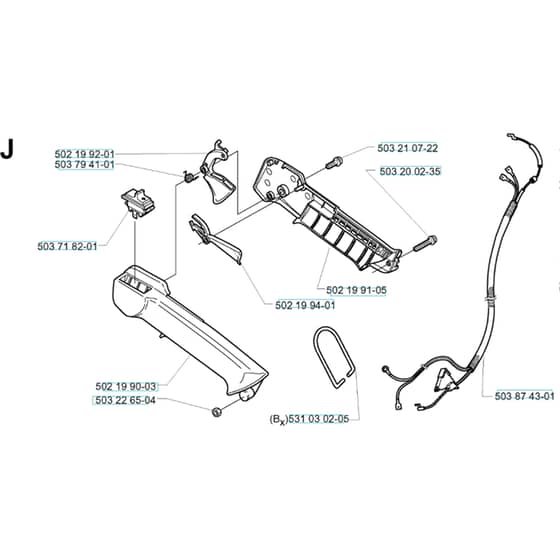

Husqvarna 225 B - X-SERIES 2001-Current - Handle / Controls - Parts Diagram

	Part No.	Details
1	HV502 19 92-01 Available to backorder	Throttle Trigger	£8.32 £6.93
3	HV503 71 82-01 Available to backorder	Switch	£16.98 £14.15
4	HV502 19 90-03 Available to backorder	Handle Half	£23.08 £19.23
5	HV503 22 65-04 Available to backorder	Square Nut	£2.28 £1.90
6	HV531 03 02-05 Available to backorder	Suspension Bail	£5.35 £4.46
7	HV502 19 94-01 Available to backorder	Throttle Lockout	£6.62 £5.52
8	HV502 19 91-05 Available to backorder	Handle Half	£20.50 £17.08
9	HV503 87 43-01 Available to backorder	Wiring	£41.65 £34.71
10	HV503 20 02-35 Available to backorder	Screw Ihscfm	£2.56 £2.13
