Husqvarna 225 B - X-SERIES 2001-Current - Carburetor / Air Filter

Description

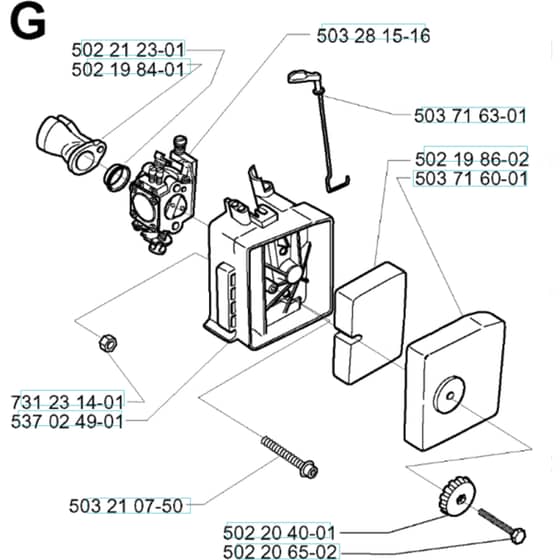

Husqvarna 225 B - X-SERIES 2001-Current - Carburetor / Air Filter - Parts Diagram

	Part No.	Details
1	HV502 21 23-01 Available to backorder	Support Ring	£3.82 £3.18
2	HV502 19 84-01 Available to backorder	Inlet Pipe	£19.88 £16.57
3	HV731 23 14-01 In stock	Hexagon Nut	£1.30 £1.08
4	HV537 02 49-01 Available to backorder	Filter Holder	£8.98 £7.48
5	HV503 21 07-50 Available to backorder	Screw Ihscft	£2.30 £1.92
6	HV502 20 65-02 Available to backorder	Screw Ehhm	£2.30 £1.92
7	HV502 20 40-01 In stock	Knob	£6.22 £5.18
8	HV503 71 60-01 Available to backorder	Filter Cover	£8.29 £6.91
9	HV502 19 86-02 In stock	Air Filter	£7.93 £6.61
10	HV503 71 63-01 Available to backorder	Choke Control	£6.40 £5.33
11	HV503 28 15-16 Available to backorder	Carburettor	£59.81 £49.84
