Husqvarna 143R-II - Fuel Tank

Husqvarna 143R-II - Fuel Tank

Part No. 143r_ii_fuel_tank-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 143R-II - Fuel Tank

Husqvarna 143R-II - Fuel Tank

Description

Husqvarna 143R-II

Model Year -

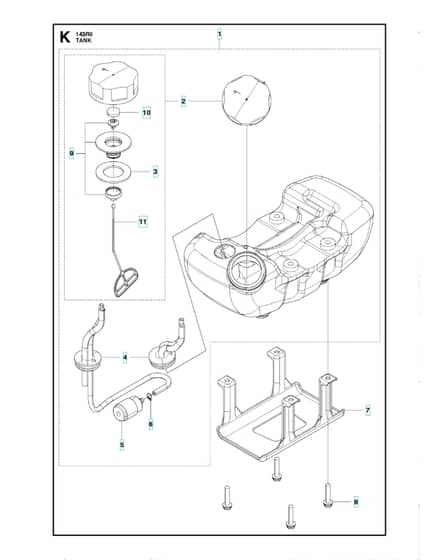

Fuel Tank - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV586 93 15-01 Available to backorder	Tank		£48.70 £40.58
	2		HV505 30 96-01 Available to backorder	Cap		£16.98 £14.15
	3		HV506 74 43-01 Available to backorder	Packing		£1.45 £1.21
	4		HV505 31 03-01 In stock	Fuel Hose		£16.75 £13.96
	5		HV503 44 32-01 In stock	Fuel Filter		£3.94 £3.28
	6		HV506 70 70-01 Available to backorder	Clip		£0.77 £0.64
	7		HV505 31 09-01 Available to backorder	Guard		£20.77 £17.31
	8		HV505 31 10-01 Available to backorder	Screw		£2.05 £1.71
	9		HV515 36 94-01 Available to backorder	Holder		£6.40 £5.33
	10		HV506 74 68-01 Available to backorder	Filter		£2.71 £2.26
	11		HV506 74 58-01 Available to backorder	Stopper		£1.56 £1.30

Description

Husqvarna 143R-II

Model Year -

Fuel Tank - Parts Diagram
