Husqvarna 140E-SERIESTRIOBRAKE - Chain Brake & Clutch Cover

Name: Husqvarna 140E-SERIESTRIOBRAKE - Chain Brake & Clutch Cover
SKU: 140e_seriestriobrake_chain_brake_clutch_cover-group
Price: 0.72 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 140E-SERIESTRIOBRAKE - Chain Brake & Clutch Cover

Description

Husqvarna 140E-SERIESTRIOBRAKE

Model Year -

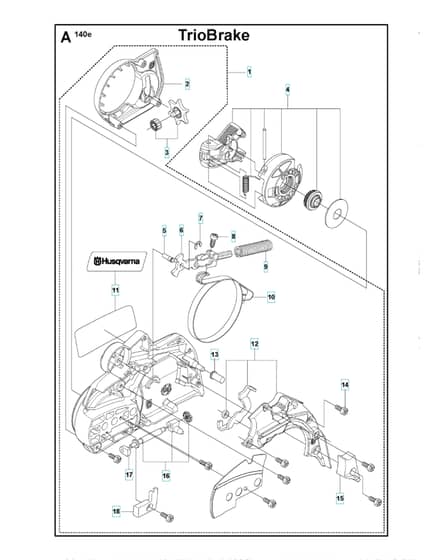

Chain Brake & Clutch Cover - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HV521 92 59-01 Available to backorder	Clutch Cover Assy	£159.82 £133.18
2	HV537 39 26-01 Available to backorder	Heat Protector	£12.94 £10.78
3	HV537 34 72-01 Available to backorder	Gear Assy	£10.58 £8.82
4	HV537 34 78-01 Available to backorder	Knob	£24.90 £20.75
5	HV503 89 29-01 Available to backorder	Pin	£1.42 £1.18
6	HV503 89 08-02 Available to backorder	Knee Joint Assy	£26.96 £22.47
7	HV735 31 08-20 Available to backorder	E-Clip	£0.86 £0.72
9	HV505 89 26-01 Available to backorder	Brake Spring	£5.04 £4.20
10	HV544 30 60-03 Available to backorder	Brake Band Assy	£11.40 £9.50
11	HV544 35 75-01 Available to backorder	Label	£2.84 £2.37
13	HV503 85 52-01 Available to backorder	Guide Bushing	£5.68 £4.73
14	HV503 21 70-10 Available to backorder	Screw Ccrpant	£1.56 £1.30
15	HV544 25 31-01 Available to backorder	Wear Protection	£6.20 £5.17
16	HV502 49 32-01 Available to backorder	Chain Tensioner	£17.68 £14.73
18	HV504 54 28-01 Available to backorder	Cover Lid	£4.26 £3.55
