Husqvarna 13620040100001-CURRENT - Chain Brake

Name: Husqvarna 13620040100001-CURRENT - Chain Brake
SKU: 13620040100001_current_chain_brake-group
Price: 1.09 GBP
Availability: InStock

Part No. 13620040100001_current_chain_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 13620040100001-CURRENT - Chain Brake

Description

Husqvarna 13620040100001-CURRENT

Model Year -

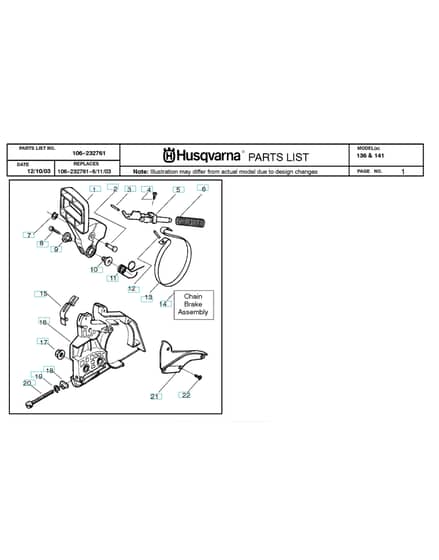

Chain Brake - Parts Diagram

	Part No.	Details
1	HV530 07 13-48 Available to backorder	Lever	£26.52 £22.10
2	HV530 02 98-79 Available to backorder	Screw	£2.56 £2.13
5	HV530 05 47-41 Available to backorder	Knee Link	£17.32 £14.43
8	HV530 01 63-84 Available to backorder	Screw	£1.33 £1.11
9	HV530 05 65-31 In stock	Shaft Pivot	Was £8.40 £7.00 Special Price £5.66 £4.72
11	HV530 01 59-10 Available to backorder	Spring	£3.78 £3.15
12	HV530 01 59-13 In stock	Pen	£1.31 £1.09
15	HV530 02 98-78 Available to backorder	Spring	£2.86 £2.38
17	HV530 01 59-17 In stock	Nut	£2.50 £2.08
18	HV530 01 58-26 Available to backorder	Pen	£1.90 £1.58
19	HV530 03 85-93 In stock	Retainer	£2.46 £2.05
20	HV530 01 61-10 In stock	Screw	£2.60 £2.17
