Description

Husqvarna 135R

Model Year -

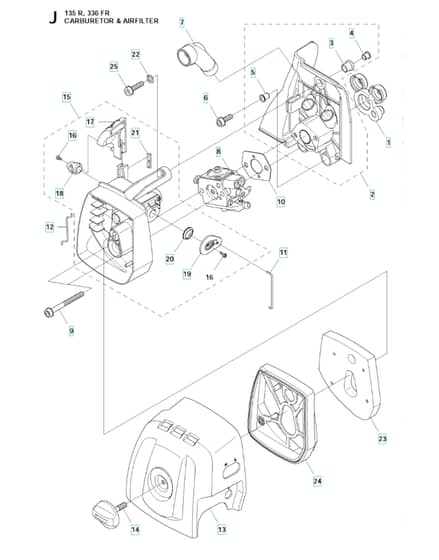

Carburetor & Air Filter - Parts Diagram

Ref. Img. Part No. Details
  1 Inlet Pipe
Inlet Pipe
HV537 33 43-01 Out of stock
Inlet Pipe
£11.39 £9.49

  2 Insulation Wall
Insulation Wall
HV537 37 12-02 Out of stock
Insulation Wall
£16.19 £13.49

  3 Sleeve
Sleeve
HV537 37 11-01 Out of stock
Sleeve
£5.58 £4.65

  4 Tubular Rivet
Tubular Rivet
HV544 01 91-01 Out of stock
Tubular Rivet
£5.45 £4.54

  5 Tubular Rivet
Tubular Rivet
HV537 37 38-03 Out of stock
Tubular Rivet
£5.45 £4.54

  6 Screw Ihscfm
Screw Ihscfm
HV503 20 03-16 Out of stock
Screw Ihscfm
£1.69 £1.41

  7 Air Duct
Air Duct
HV537 34 13-01 Out of stock
Air Duct
£6.47 £5.39

  8 Carburettorzama C1Q-El45
Carburettorzama C1Q-El45
HV575 72 90-01 Out of stock
Carburettorzama C1Q-El45
£68.28 £56.90

  9 Screw Ihscft
Screw Ihscft
HV503 21 75-50 Out of stock
Screw Ihscft
£3.08 £2.57

  10 Gasket
Gasket
HV503 49 71-01 Out of stock
Gasket
£2.93 £2.44

  11 Lever
Lever
HV537 34 90-01 Out of stock
Lever
£2.20 £1.83

  12 Sleeving Bracket
Sleeving Bracket
HV544 37 27-01 Out of stock
Sleeving Bracket
£7.91 £6.59

  13 Filter Cover
Filter Cover
HV575 84 18-01 Out of stock
Filter Cover
£9.84 £8.20

  14 Knob
Knob
HV537 21 32-09 Out of stock
Knob
£6.19 £5.16

  15 Filter Holder Assy
Filter Holder Assy
HV575 86 37-02 Out of stock
Filter Holder Assy
£26.96 £22.47

  16 Screw Ccrpant
Screw Ccrpant
HV503 21 29-06 Out of stock
Screw Ccrpant
£1.24 £1.03

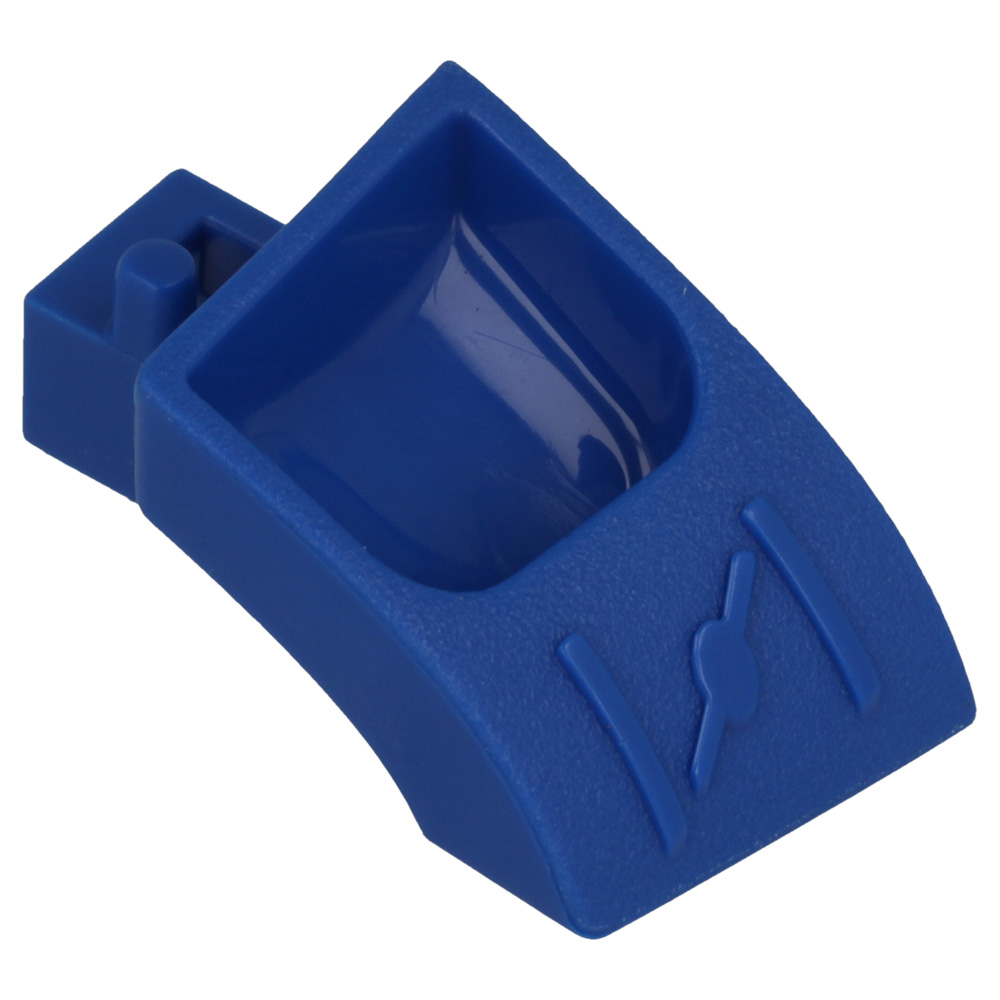

  17 Choke Control
Choke Control
HV575 84 15-01 Out of stock
Choke Control
£7.26 £6.05

  18 Choke Lever
Choke Lever
HV575 84 16-02 Out of stock
Choke Lever
£6.47 £5.39

  19 Lever
Lever
HV544 01 46-01 Out of stock
Lever
£7.85 £6.54

  20 Bellows
Bellows
HV544 01 47-01 Out of stock
Bellows
£3.86 £3.22

  21 Bar
Bar
HV544 02 58-01 Out of stock
Bar
£1.76 £1.47

  22 Washer
Washer
HV503 23 10-06 Out of stock
Washer
£2.26 £1.88

  23 Filter
Filter
HV576 21 53-01 Out of stock
Filter
£14.96 £12.47

  24 Frame
Frame
HV575 86 38-01 Out of stock
Frame
£17.47 £14.56

  25 Screw Ihscfm
Screw Ihscfm
HV503 20 03-20 Out of stock
Screw Ihscfm
£2.02 £1.68


Description

Husqvarna 135R

Model Year -

Carburetor & Air Filter - Parts Diagram
