Husqvarna 135R - Bevel Gear

Husqvarna 135R - Bevel Gear

Description

Husqvarna 135R

Model Year -

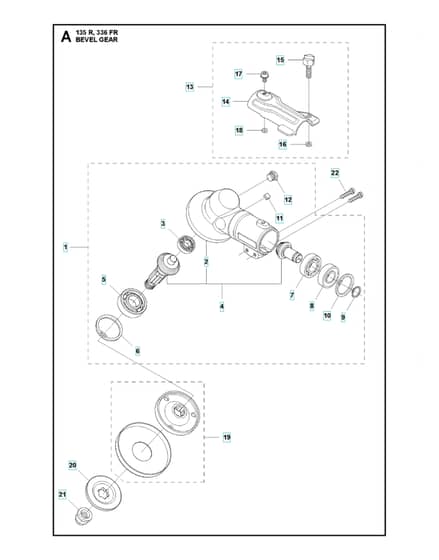

Bevel Gear - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV544 21 64-01 Available to backorder	Gear		£197.04 £164.20
	2		HV537 29 59-02 Available to backorder	Gear Housing		£86.16 £71.80
	3		HV738 21 99-00 Available to backorder	Ball Bearing		£6.31 £5.26
	4		HV505 13 33-01 Available to backorder	Spare Parts Kit		£49.85 £41.54
	5		HV503 25 28-01 Available to backorder	Ball Bearing		£7.24 £6.03
	6		HV735 31 31-10 Available to backorder	Circlip		£0.77 £0.64
	7		HV738 21 01-10 Available to backorder	Ball Bearing		£6.31 £5.26
	8		HV738 21 01-12 Available to backorder	Ball Bearing		£6.44 £5.37
	9		HV735 31 14-00 Available to backorder	Circlip		£0.78 £0.65
	10		HV735 31 28-10 Available to backorder	Circlip		£3.59 £2.99
	12		HV503 20 15-01 Available to backorder	Screw		£5.42 £4.52
	15		HV537 18 95-01 Available to backorder	Screw		£3.97 £3.31
	16		HV732 21 16-01 Available to backorder	Lock Nut		£1.79 £1.49
	17		HV503 20 07-10 Available to backorder	Screw Ihscfm		£1.78 £1.48
	18		HV574 03 95-01 Available to backorder	Lock Nut		£1.56 £1.30
	19		HV537 35 14-02 Available to backorder	Driver		£51.13 £42.61
	21		HV502 29 11-01 In stock	Blade Nut		£5.75 £4.79
	22		HV503 20 03-25 Available to backorder	Screw Ihscfm		£2.30 £1.92

Description

Husqvarna 135R

Model Year -

Bevel Gear - Parts Diagram
