Husqvarna 135E-SERIES - Carburetor

Name: Husqvarna 135E-SERIES - Carburetor
SKU: 135e_series_carburetor-group
Price: 1.07 GBP
Availability: InStock

Part No. 135e_series_carburetor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 135E-SERIES

Model Year -

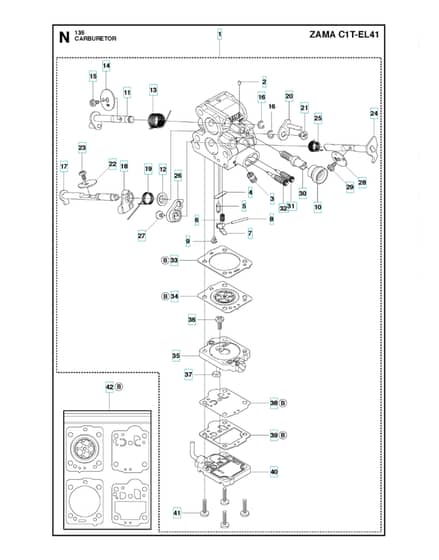

Carburetor - Parts Diagram

	Part No.	Details
1	HV547 72 74-01 In stock	Carburettorzama C1T-El41	£86.16 £71.80
2	HV503 48 11-01 Available to backorder	Piecepiece	£6.36 £5.30
3	HV504 02 40-01 Available to backorder	Nozzle Assynozzle Assy	£17.62 £14.68
4	HV503 53 56-01 Available to backorder	Plug Welchplug Welch	£5.17 £4.31
5	HV503 47 97-01 Available to backorder	Valvevalve	£14.81 £12.34
7	HV503 66 59-01 Available to backorder	Leverlever	£5.63 £4.69
8	HV503 48 00-01 Available to backorder	Pin Retaining Screwpin Retaning Screw	£4.64 £3.87
10	HV505 53 52-01 Available to backorder	Hub Capcap	£9.16 £7.63
13	HV504 02 85-01 Available to backorder	Springspring	£3.32 £2.77
16	HV504 02 67-01 Available to backorder	Circlipcirclip	£4.42 £3.68
18	HV540 05 37-01 Available to backorder	Leverlever	£8.47 £7.06
19	HV504 02 83-01 Available to backorder	Springspring	£3.32 £2.77
20	HV504 02 63-01 Available to backorder	Leverlever	£24.68 £20.57
22	HV504 02 74-01 Available to backorder	Valvevalve	£9.16 £7.63
23	HV503 48 18-01 Available to backorder	Screwscrew	£1.28 £1.07
25	HV504 02 84-01 Available to backorder	Springspring	£3.32 £2.77
26	HV544 98 31-01 Available to backorder	Leverlever	£6.91 £5.76
27	HV503 47 90-01 Available to backorder	Screwscrew	£1.28 £1.07
29	HV503 47 92-01 Available to backorder	Screwscrew	£1.28 £1.07
31	HV504 90 92-01 Available to backorder	Screwscrew	£16.92 £14.10
32	HV504 02 81-01 Available to backorder	Screwscrew	£16.34 £13.62
33	HV504 02 43-01 Available to backorder	Gasketgasket	£4.63 £3.86
34	HV504 02 45-01 Available to backorder	Diaphragmdiaphragm	£21.10 £17.58
35	HV504 02 46-01 Available to backorder	Bodybody	£31.01 £25.84
37	HV504 02 50-01 Available to backorder	Strainerstrainer	£5.38 £4.48
38	HV504 02 56-01 Available to backorder	Diaphragmdiaphragm	£14.10 £11.75
39	HV504 02 57-01 Available to backorder	Gasketgasket	£4.63 £3.86
42	HV504 02 86-01 Available to backorder	Gasket Kitset Of Gaskets	£12.97 £10.81
