Husqvarna 135 - Chain Brake & Clutch Cover

Name: Husqvarna 135 - Chain Brake & Clutch Cover
SKU: 135_chain_brake_clutch_cover-group
Price: 0.65 GBP
Availability: InStock

Part No. 135_chain_brake_clutch_cover-group

Description

Husqvarna 135

Model Year -

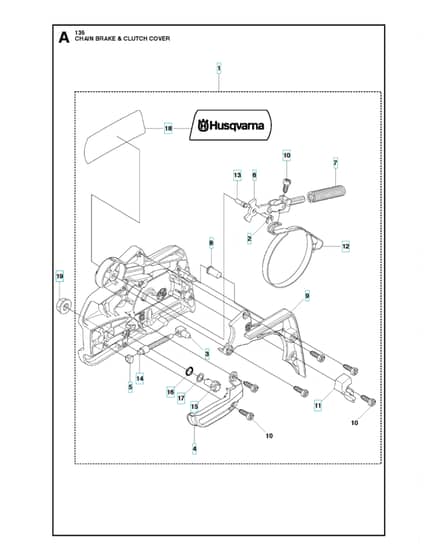

Chain Brake & Clutch Cover - Parts Diagram

	Part No.	Details
2	HV735 31 08-20 Available to backorder	E-Clipe-Clip	£0.78 £0.65
3	HV537 28 66-01 Available to backorder	Pawlpawl	£6.40 £5.33
4	HV540 06 33-01 Available to backorder	Chain Guidechain Guide	£5.51 £4.59
5	HV537 01 74-01 Available to backorder	Bearing Sleevebearing Sleeve	£5.75 £4.79
6	HV503 89 08-02 Available to backorder	Knee Joint Assyknee Joint	£27.20 £22.67
7	HV505 89 26-01 Available to backorder	Brake Springbrake Spring	£5.02 £4.18
8	HV503 85 52-01 Available to backorder	Guide Bushingguide Bushing	£5.75 £4.79
9	HV544 24 85-01 Available to backorder	Cover Lidcover Lid	£8.34 £6.95
10	HV503 21 70-10 Available to backorder	Screw Ccrpantscrew	£1.61 £1.34
11	HV544 25 31-01 Available to backorder	Wear Protectionwear Protection	£6.14 £5.12
12	HV544 30 60-03 In stock	Brake Band Assybrake Band Assy	£11.24 £9.37
13	HV503 89 29-01 Available to backorder	Pinpin	£1.46 £1.22
14	HV537 39 70-01 Available to backorder	Worm Screwworm Screw	£12.66 £10.55
15	HV537 07 94-02 Available to backorder	Worm Wheelworm Wheel	£12.84 £10.70
16	HV740 48 07-02 Available to backorder	O-Ringo-Ring	£3.82 £3.18
17	HV503 23 00-63 Available to backorder	Washerwasher	£2.30 £1.92
18	HV544 37 68-01 Available to backorder	Labellabel. Clutch Cover	£3.07 £2.56
19	HV503 22 00-01 In stock	Hexagon Nutnut	£2.63 £2.19
