Husqvarna 129R-967193301 - Shaft & Handle

Name: Husqvarna 129R-967193301 - Shaft & Handle
SKU: 129r_967193301_shaft_handle-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna 129R-967193301 - Shaft & Handle

Description

Husqvarna 129R-967193301

Model Year -

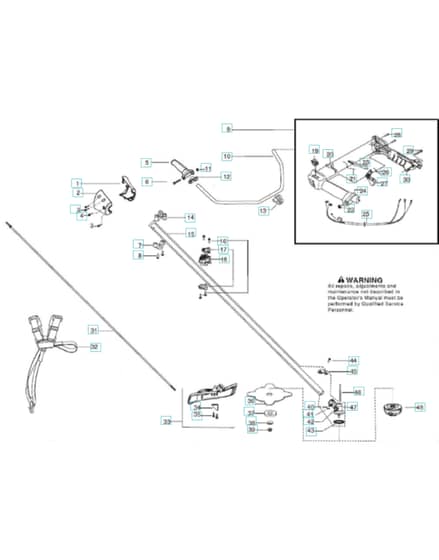

Shaft & Handle - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	HV587 34 42-01 Available to backorder	Transport Guard	£9.72 £8.10
0	HV530 03 11-59 Available to backorder	Wrench	£1.20 £1.00
1	HV574 81 07-01 Available to backorder	Cone	£7.86 £6.55
2	HV574 81 03-01 Available to backorder	Cone	£7.86 £6.55
4	HV584 29 40-01 Available to backorder	Screw Itxpant	£1.56 £1.30
5	HV537 17 28-02 Available to backorder	Handle	£12.94 £10.78
6	HV503 20 02-45 Available to backorder	Screw Ihscfm	£2.34 £1.95
7	HV545 05 66-01 Available to backorder	Clamp	£7.12 £5.93
8	HV530 01 59-40 Available to backorder	Screw	£2.34 £1.95
9	HV545 12 55-05 Available to backorder	Throttle Assy	£178.56 £148.80
10	HV502 19 95-04 Available to backorder	Handlebar	£24.58 £20.48
11	HV731 23 14-01 Available to backorder	Hexagon Nut	£1.51 £1.26
12	HV537 17 29-01 Available to backorder	Cover	£5.82 £4.85
13	HV502 21 12-01 Available to backorder	Staple	£0.92 £0.77
14	HV545 11 33-01 Available to backorder	Clamp	£6.18 £5.15
15	HV580 44 66-21 Available to backorder	Kit	£179.94 £149.95
17	HV530 05 85-63 Available to backorder	Bracket	£1.28 £1.07
18	HV545 05 85-01 Available to backorder	Bracket	£11.98 £9.98
19	HV537 41 90-01 In stock	Switch	£15.48 £12.90
20	HV537 16 07-03 Available to backorder	Throttle Lockout	£6.97 £5.81
21	HV537 17 43-01 Available to backorder	Spring	£3.36 £2.80
22	HV503 22 10-13 Available to backorder	Hexagon Nut	£2.06 £1.72
24	HV537 16 02-09 Available to backorder	Handle Half	£22.00 £18.33
25	HV580 29 43-01 Available to backorder	Cable Assy	£36.86 £30.72
26	HV537 17 42-01 Available to backorder	Spring Throttle Trig	£3.28 £2.73
27	HV506 49 50-01 Available to backorder	Throttle Control	£8.40 £7.00
30	HV537 16 03-02 Available to backorder	Handle Half	£22.00 £18.33
31	HV545 00 75-07 Available to backorder	Shaft	£41.60 £34.67
32	HV537 21 63-01 Available to backorder	Harness	£38.52 £32.10
33	HV580 44 66-06 Available to backorder	Kit	£49.18 £40.98
35	HV584 41 00-01 Available to backorder	Screw	£1.78 £1.48
37	HV503 89 01-01 In stock	Support Cup	£3.84 £3.20
38	HV537 28 56-01 In stock	Support Flange	£14.60 £12.17
39	HV503 85 63-01 In stock	Nut	£5.76 £4.80
40	HV584 41 05-01 Available to backorder	Screw	£1.94 £1.62
41	HV584 41 06-01 Available to backorder	Screw	£1.56 £1.30
42	HV575 72 46-01 Available to backorder	Plug	£3.48 £2.90
43	HV537 23 49-01 In stock	Driver Assy	£33.84 £28.20
44	HV584 41 01-01 Available to backorder	Screw	£1.82 £1.52
45	HV530 05 75-54 Available to backorder	Bracket	£6.13 £5.11
46	HV502 28 59-01 Available to backorder	Stop	£5.42 £4.52
47	HV530 09 62-95 Available to backorder	Bevel Gear	£99.84 £83.20
