Husqvarna 128 C - Engine

Name: Husqvarna 128 C - Engine
SKU: 128_c_engine-group
Price: 1.14 GBP
Availability: InStock

Part No. 128_c_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna 128 C

Model Year -

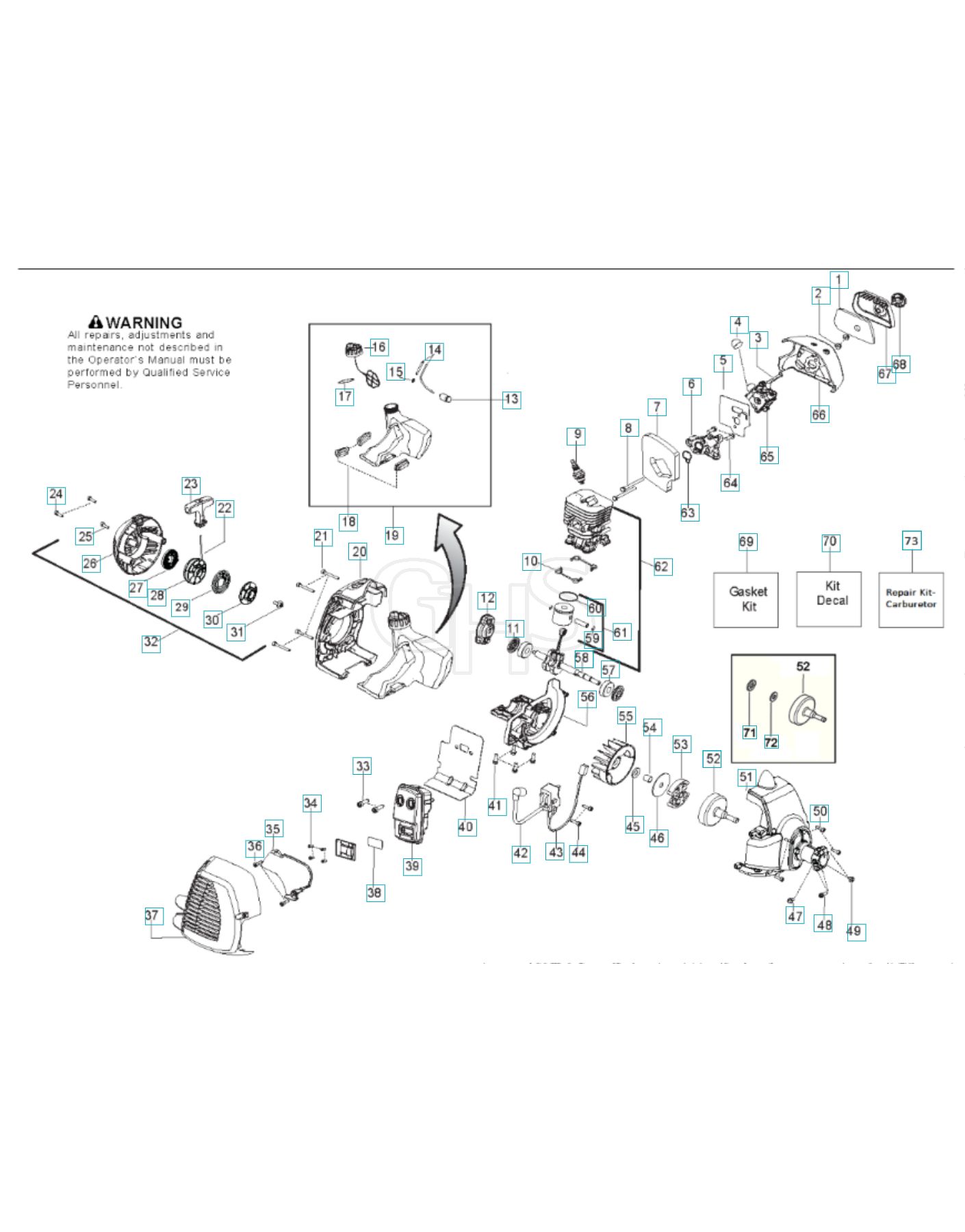

Engine - Parts Diagram

	Part No.	Details
1	HV530 15 02-53 In stock	Air Filter	£8.38 £6.98
2	HV530 01 61-01 Available to backorder	Nut	£1.56 £1.30
3	HV530 05 78-44 Available to backorder	Lever	£8.38 £6.98
4	HV530 05 87-09 Available to backorder	Bulb	£12.20 £10.17
6	HV530 03 55-96 Available to backorder	Adapter	£10.90 £9.08
12	HV503 87 33-05 In stock	Starter Pawl	£17.69 £14.74
13	HV577 16 72-01 In stock	Fuel Filter	£8.09 £6.74
14	HV530 06 95-99 In stock	Hose	£12.78 £10.65
15	HV530 02 38-77 Available to backorder	Nipple	£7.18 £5.98
18	HV530 05 97-80 Available to backorder	Insulator	£7.82 £6.52
19	HV545 18 08-70 Available to backorder	Kit-Fuel Tank Assy.	£44.86 £37.38
21	HV530 01 64-48 Available to backorder	Screw	£1.37 £1.14
22	HV545 00 80-79 Available to backorder	Kit-Rope	£5.18 £4.32
23	HV545 04 32-04 Available to backorder	Starter Handle	£5.84 £4.87
24	HV530 01 64-26 Available to backorder	Screw	£2.30 £1.92
27	HV545 00 80-87 In stock	Spring	£13.22 £11.02
28	HV585 53 03-01 In stock	Starter Pulley	£16.44 £13.70
30	HV579 36 62-01 Available to backorder	Pulley	£13.69 £11.41
31	HV530 01 64-68 Available to backorder	Screw	£2.30 £1.92
32	HV579 06 31-01 Available to backorder	Starter Housing	£35.04 £29.20
33	HV530 05 89-82 Available to backorder	Bolt	£2.56 £2.13
34	HV530 01 52-41 Available to backorder	Screw	£1.56 £1.30
35	HV530 15 04-40 Available to backorder	Protection	£7.79 £6.49
36	HV530 01 64-49 Available to backorder	Screw	£1.56 £1.30
37	HV576 21 50-01 Available to backorder	Kit	£27.55 £22.96
38	HV545 03 05-01 Available to backorder	Screen	£14.27 £11.89
39	HV574 03 15-02 Available to backorder	Kitmuffler Id Code 044801007C	£51.91 £43.26
42	HV545 04 67-01 Available to backorder	Ignition Module	£52.20 £43.50
43	HV530 03 92-27 Available to backorder	Shorting Lead	£13.46 £11.22
45	HV530 01 64-63 Available to backorder	Washer	£2.56 £2.13
46	HV530 09 41-89 Available to backorder	Washer	£10.26 £8.55
48	HV530 01 57-74 Available to backorder	Screwsee Service Update.	£2.83 £2.36
49	HV530 01 57-68 Available to backorder	Nut	£2.69 £2.24
50	HV530 01 64-56 Available to backorder	Screw	£1.79 £1.49
51	HV545 20 52-01 Available to backorder	Fan Housingsee Service Update.	£50.64 £42.20
52	HV580 44 66-01 Available to backorder	Kits/N ≥ 2012-091N	£56.94 £47.45
52	HV530 15 00-39 Available to backorder	Clutch Drums/N ≤ 2012-090N	£40.40 £33.67
53	HV530 05 51-22 Available to backorder	Clutch Assy	£54.08 £45.07
54	HV530 05 78-52 Available to backorder	Ring	£6.01 £5.01
55	HV530 03 92-42 Available to backorder	Flywheel	£46.76 £38.97
56	HV577 92 95-02 Available to backorder	Crankcase	£60.98 £50.82
57	HV545 01 34-01 Available to backorder	Bearing	£7.24 £6.03
59	HV530 01 51-62 Available to backorder	Circlip	£2.30 £1.92
60	HV575 22 79-01 Available to backorder	Ring	£7.12 £5.93
61	HV545 08 18-14 Available to backorder	Piston	£52.56 £43.80
62	HV545 00 80-83 Available to backorder	Cylinder Assy	£141.96 £118.30
64	HV530 01 58-97 Available to backorder	Screw	£2.05 £1.71
65	HV545 08 18-48 In stock	Carburettor Kit	£66.79 £55.66
66	HV576 45 90-01 Available to backorder	Base	£16.26 £13.55
67	HV530 05 78-46 Available to backorder	Cover	£9.00 £7.50
68	HV530 05 97-96 Available to backorder	Knob Assy Airbox Cover	£5.51 £4.59
69	HV545 00 80-84 Available to backorder	Gasket Kit	£26.56 £22.13
70	HV545 00 33-52 Available to backorder	Kit	£12.04 £10.03
71	HV545 17 34-01 Available to backorder	Bearings/N ≤ 2012-090N	£11.16 £9.30
72	HV530 01 64-20 Available to backorder	Washer - Thrusts/N ≤ 2012-090N	£2.83 £2.36
73	HV504 81 18-01 Available to backorder	Gasket Kitzama Carburetor	£11.03 £9.19
